element <contractualMatrix> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ContractualMatrix
Content:	complex, 3 elements
Defined:	locally within Documentation complexType in fpml-shared-5-8.xsd; see XML source

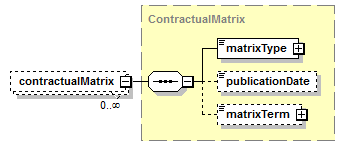

Content Model Diagram

XML Representation Summary

Content:

matrixType, publicationDate?, matrixTerm?

</contractualMatrix>

Content model elements (3):

matrixTerm,

matrixType,

publicationDate (in contractualMatrix)

Included in content model of elements (1):

documentation

Annotation

A reference to a contractual matrix of elected terms/values (such as those published by ISDA) that shall be deemed to apply to the trade. The applicable matrix is identified by reference to a name and optionally a publication date. Depending on the structure of the matrix, an additional term (specified in the matrixTerm element) may be required to further identify a subset of applicable terms/values within the matrix.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="contractualMatrix" type="ContractualMatrix"/>
