complexType "Party"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 13 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definitions of 1 attribute, 2 elements
Used:	at 4 locations

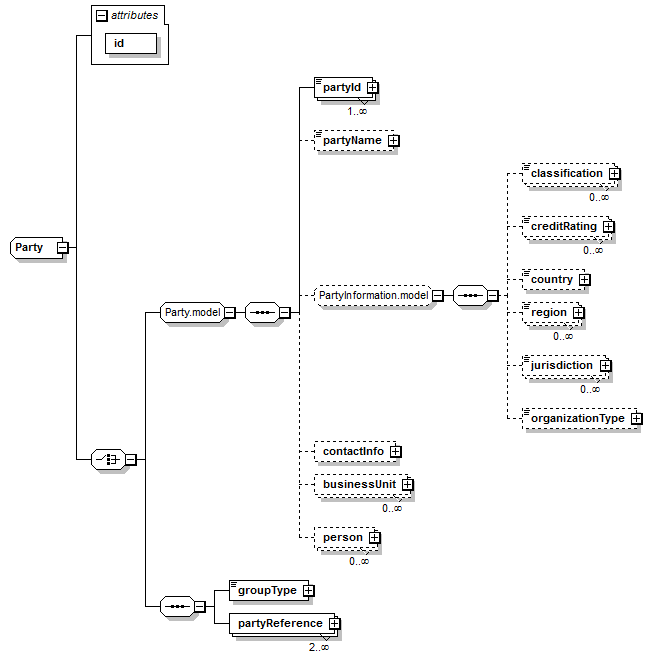

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

(partyId+, partyName?, (classification*, creditRating*, country?, region*, jurisdiction*, organizationType?)?, contactInfo?, businessUnit*, person*) | (groupType, partyReference[2..*])

</...>

Content Model Elements (13):

businessUnit,

classification,

contactInfo (defined in Party.model group),

country (defined in PartyInformation.model group),

partyReference (defined in Party complexType),

person,

region

All Direct / Indirect Based Elements (4):

party (defined in Parties.model group),

party (defined in PartiesAndAccounts.model group),

party (in creditEventNotification),

party (in creditEventNotificationRetracted)

Known Usage Locations

As direct type of elements (4):

party (defined in Parties.model group),

party (defined in PartiesAndAccounts.model group),

party (in creditEventNotification),

party (in creditEventNotificationRetracted)

Annotation

A type defining a legal entity or a subdivision of a legal entity.

Parties can perform multiple roles in a trade lifecycle. For example, the principal parties obligated to make payments from time to time during the term of the trade, but may include other parties involved in, or incidental to, the trade, such as parties acting in the role of novation transferor/transferee, broker, calculation agent, etc. In FpML roles are defined in multiple places within a document.

XML Source (w/o annotations (5); see within schema source)

<xsd:complexType name="Party">

<xsd:choice>

<xsd:group ref="Party.model"/>

<xsd:sequence>

<xsd:element name="groupType" type="PartyGroupType"/>

<xsd:element maxOccurs="unbounded" minOccurs="2" name="partyReference" type="PartyReference"/>

</xsd:sequence>

</xsd:choice>

<xsd:attribute name="id" type="xsd:ID" use="required"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	required

The id uniquely identifying the Party within the document.

XML Source (w/o annotations (1); see within schema source)

<xsd:attribute name="id" type="xsd:ID" use="required"/>

Content Element Detail (all declarations; defined within this component only; 2/13)

groupType

Type:

PartyGroupType, simple content

Party Group Type, e.g. JointAndSeveralLiability

Simple Content

xsd:normalizedString

maxLength:	255
minLength:	0

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="groupType" type="PartyGroupType"/>

partyReference

Type:

PartyReference, empty content

Reference to a party that is a member of the group of entities that are acting together as a single party in a transaction.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="2" name="partyReference" type="PartyReference"/>
