complexType "PeriodicDates"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 2 locations

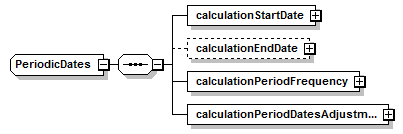

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (4):
calculationEndDate,
calculationPeriodDatesAdjustments (defined in PeriodicDates complexType),
calculationPeriodFrequency (defined in PeriodicDates complexType),
calculationStartDate
All Direct / Indirect Based Elements (2):
periodicDates (defined in AdjustableRelativeOrPeriodicDates complexType),
periodicDates (defined in AdjustableRelativeOrPeriodicDates2 complexType)
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PeriodicDates">
<xsd:sequence>
<xsd:element name="calculationStartDate" type="AdjustableOrRelativeDate"/>
<xsd:element minOccurs="0" name="calculationEndDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 4/4)
calculationEndDate
Type:
AdjustableOrRelativeDate, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="calculationEndDate" type="AdjustableOrRelativeDate"/>
calculationPeriodDatesAdjustments
Type:
BusinessDayAdjustments, complex content
The business day convention to apply to each calculation period end date if it would otherwise fall on a day that is not a business day in the specified financial business centers.
XML Source (w/o annotations (1); see within schema source)
calculationPeriodFrequency
Type:
CalculationPeriodFrequency, complex content
The frequency at which calculation period end dates occur with the regular part of the calculation period schedule and their roll date convention.
XML Source (w/o annotations (1); see within schema source)
calculationStartDate
Type:
AdjustableOrRelativeDate, complex content
XML Source (see within schema source)
<xsd:element name="calculationStartDate" type="AdjustableOrRelativeDate"/>
