complexType "PositiveMoney"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 7 locations

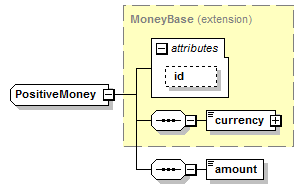

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (2):
amount (defined in PositiveMoney complexType),
currency (defined in MoneyBase complexType)
All Direct / Indirect Based Elements (7):
featurePaymentAmount (defined in CommodityBarrier complexType),
featurePaymentAmount (in digital),
minimumExecutionAmount,
notionalAmount (defined in FxCashSettlement complexType),
notionalAmount (in fxFlexibleForward),
principal (in termDeposit),
settlementAmount (in fxFlexibleForward)
Known Usage Locations
Annotation
A type defining a positive money amount
Type Definition Detail
Type Derivation Tree
MoneyBase (extension)
  PositiveMoney
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PositiveMoney">
<xsd:complexContent>
<xsd:extension base="MoneyBase">
<xsd:sequence>
<xsd:element name="amount" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/2)
amount
Type:
PositiveDecimal, simple content
The positive monetary quantity in currency units.
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="amount" type="PositiveDecimal"/>
