complexType "StrikeSchedule"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 4 elements
Defined:	globally in fpml-shared-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 2 locations

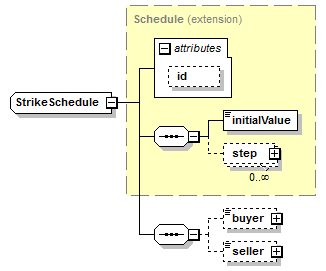

Content Model Diagram

XML Representation Summary

<...

xsd:ID

Content:

initialValue, step*, buyer?, seller?

</...>

Content Model Elements (4):

buyer (defined in StrikeSchedule complexType),

initialValue (defined in Schedule complexType),

seller (defined in StrikeSchedule complexType),

step (defined in Schedule complexType)

All Direct / Indirect Based Elements (2):

capRateSchedule, floorRateSchedule

Known Usage Locations

As direct type of elements (2):

capRateSchedule, floorRateSchedule

Annotation

A type describing a schedule of cap or floor rates.

Type Definition Detail

Type Derivation Tree

Schedule (extension)

StrikeSchedule

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="StrikeSchedule">

<xsd:complexContent>

<xsd:extension base="Schedule">

<xsd:sequence>

<xsd:element minOccurs="0" name="buyer" type="IdentifiedPayerReceiver"/>

<xsd:element minOccurs="0" name="seller" type="IdentifiedPayerReceiver"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/4)

buyer

Type:

IdentifiedPayerReceiver, simple content

The buyer of the option

Simple Content

enumeration of xsd:token

Enumeration:

"Payer"	-	The party identified as the stream payer.
"Receiver"	-	The party identified as the stream receiver.

minLength:

XML Source (w/o annotations (1); see within schema source)
