complexType "UnderlyerInterestLeg"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 9 elements
Defined:
globally in fpml-shared-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

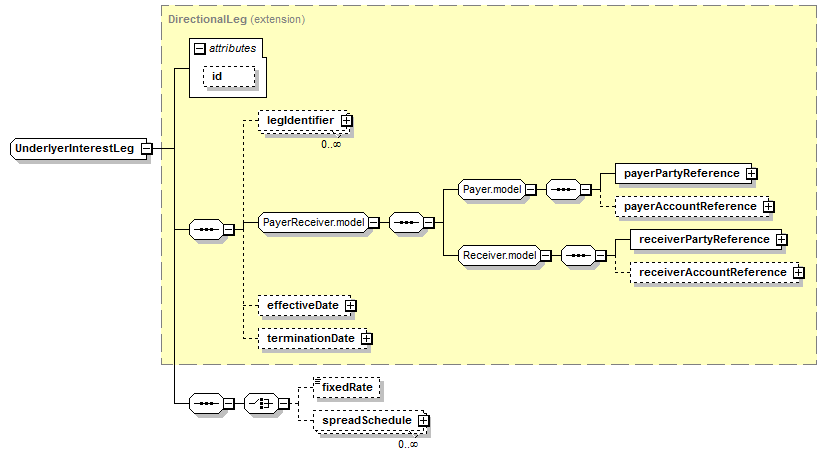

Content Model Diagram
XML Representation Summary
<...

 =
xsd:ID

>

Content:
</...>
Content Model Elements (9):
effectiveDate (defined in DirectionalLeg complexType),
payerPartyReference (defined in Payer.model group),
terminationDate (defined in DirectionalLeg complexType)
All Direct / Indirect Based Elements (1):
underlyerFinancing
Known Usage Locations
Annotation
A type describing interest payments associated with and underlyer, such as financing
Type Definition Detail
Type Derivation Tree
Leg (extension)
  DirectionalLeg (extension)
      UnderlyerInterestLeg
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="UnderlyerInterestLeg">
<xsd:complexContent>
<xsd:extension base="DirectionalLeg">
<xsd:sequence>
<xsd:choice>
<xsd:element minOccurs="0" name="fixedRate" type="xsd:decimal"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="spreadSchedule" type="SpreadSchedule"/>
</xsd:choice>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/9)
fixedRate
Type:
xsd:decimal, predefined, simple content
The calculation period fixed rate. A per annum rate, expressed as a decimal. A fixed rate of 5% would be represented as 0.05.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fixedRate" type="xsd:decimal"/>
spreadSchedule
Type:
SpreadSchedule, complex content
The ISDA Spread or a Spread schedule expressed as explicit spreads and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments. The spread is a per annum rate, expressed as a decimal. For purposes of determining a calculation period amount, if positive the spread will be added to the floating rate and if negative the spread will be subtracted from the floating rate. A positive 10 basis point (0.1%) spread would be represented as 0.001.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="spreadSchedule" type="SpreadSchedule"/>
