complexType "Quotation"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 16 elements
Defined:	globally in fpml-valuation-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

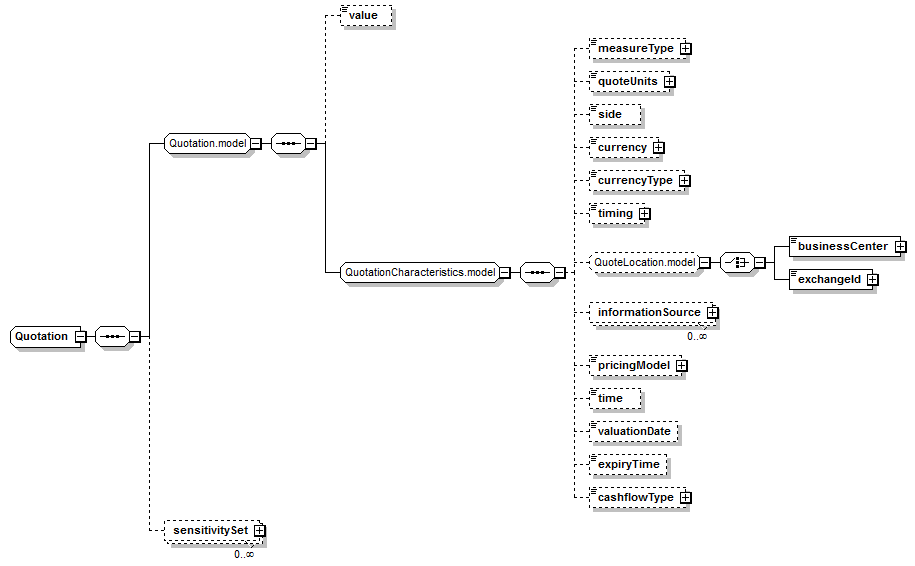

Content Model Diagram

XML Representation Summary

<...>

Content:

</...>

Content Model Elements (16):

All Direct / Indirect Based Elements (1):

Known Usage Locations

Annotation

Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure, together with optional sensitivities.

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="Quotation">

<xsd:sequence>

<xsd:group ref="Quotation.model"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="sensitivitySet" type="SensitivitySet"/>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/16)

Type:

SensitivitySet, complex content

Zero or more sets of sensitivities of this measure to various input parameters.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="sensitivitySet" type="SensitivitySet"/>
