group "CommodityBasketOptionFeatures.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
4 elements
Defined:
globally in fpml-com-5-8.xsd; see XML source
Includes:
definitions of 4 elements
Used:
at 1 location

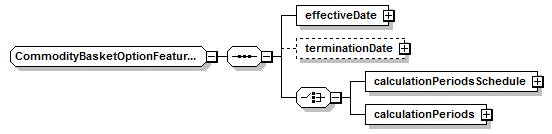

Content Model Diagram
Complex Content Model
effectiveDate, terminationDate?, (calculationPeriodsSchedule | calculationPeriods)
Content Model Elements (4):
Known Usage Locations
Annotation
Describes the features a commodity basket option.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityBasketOptionFeatures.model">
<xsd:sequence>
<xsd:element name="effectiveDate" type="AdjustableOrRelativeDate"/>
<xsd:element minOccurs="0" name="terminationDate" type="AdjustableOrRelativeDate"/>
<xsd:choice>
<xsd:element name="calculationPeriodsSchedule" type="CommodityCalculationPeriodsSchedule"/>
<xsd:element name="calculationPeriods" type="AdjustableDates"/>
</xsd:choice>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 4/4)
calculationPeriods
Type:
AdjustableDates, complex content
An absolute representation of the Calculation Period start dates of the Commodity Option Transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="calculationPeriods" type="AdjustableDates"/>
calculationPeriodsSchedule
Type:
CommodityCalculationPeriodsSchedule, complex content
A parametric representation of the Calculation Periods of the Commodity Option Transaction.
XML Source (w/o annotations (1); see within schema source)
effectiveDate
Type:
AdjustableOrRelativeDate, complex content
The effective date of the Commodity Option Transaction. Note that the Termination/Expiration Date should be specified in expirationDate within the CommodityAmericanExercise type or the CommodityEuropeanExercise type, as applicable.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="effectiveDate" type="AdjustableOrRelativeDate"/>
terminationDate
Type:
AdjustableOrRelativeDate, complex content
Specifies the termination date of the Commodity Option Transaction. In some confirmations this will be indicated as the second date in "Option Term" or "Term". Note: If provided, terminationDate should not be before specified expirationDate within the CommodityAmericanExercise type or the CommodityEuropeanExercise type.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="terminationDate" type="AdjustableOrRelativeDate"/>
