complexType "MaturityNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

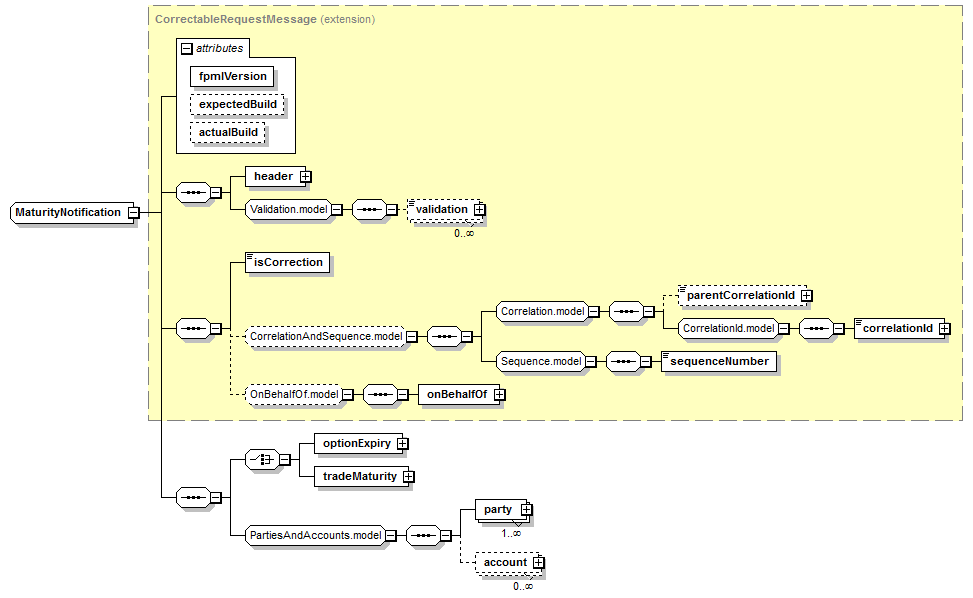

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, (optionExpiry | tradeMaturity), party+, account*
</...>
Content Model Elements (11):
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
maturityNotification
Known Usage Locations
Annotation
A message used to notify another party that a trade has matured. This can be used to report, for example, that a swap has passed its final payment and can be removed, or that an option has expired without being executed.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              MaturityNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="MaturityNotification">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:choice>
<xsd:element name="optionExpiry" type="OptionExpiryBase"/>
<xsd:element name="tradeMaturity" type="TradeMaturity"/>
</xsd:choice>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/11)
optionExpiry
Type:
OptionExpiryBase, complex content
XML Source (see within schema source)
<xsd:element name="optionExpiry" type="OptionExpiryBase"/>
tradeMaturity
Type:
TradeMaturity, complex content
XML Source (see within schema source)
<xsd:element name="tradeMaturity" type="TradeMaturity"/>
