element <equityOptionTransactionSupplement> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	EquityOptionTransactionSupplement
Content:	complex, 1 attribute, 30 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-eqd-5-8.xsd; see XML source
Used:	never

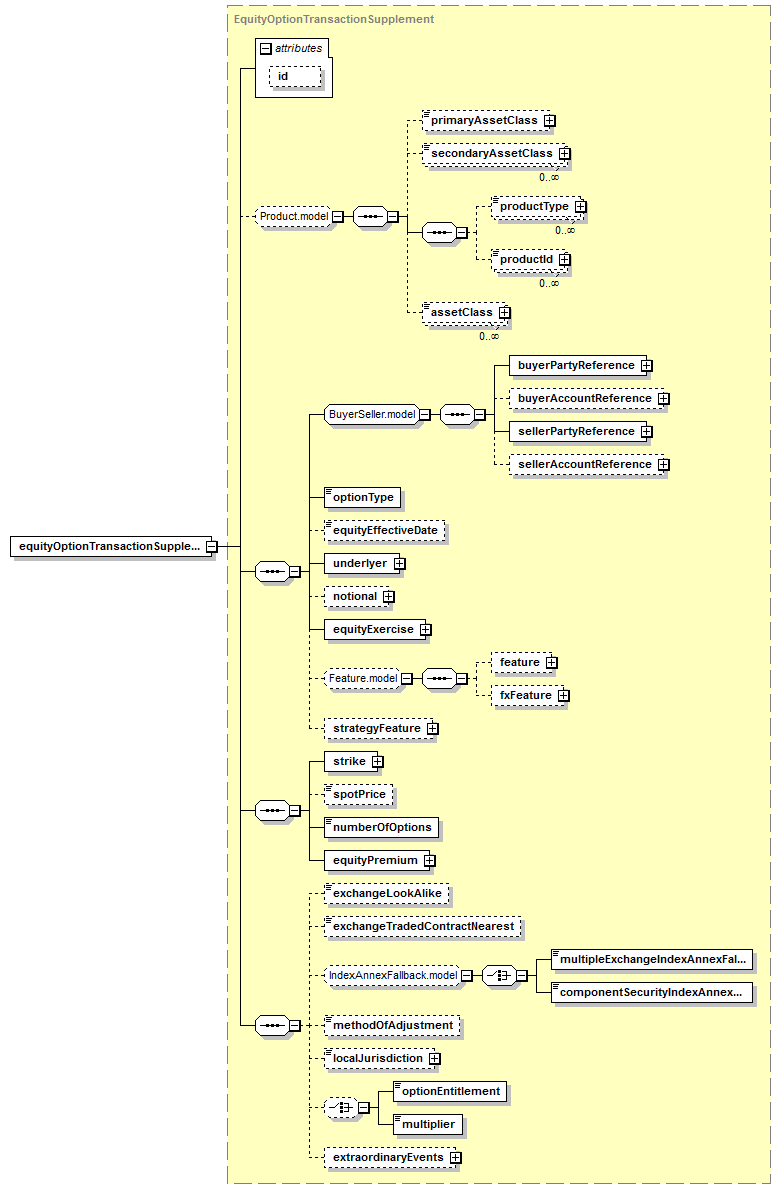

Content Model Diagram

XML Representation Summary

<equityOptionTransactionSupplement

xsd:ID

Content:

</equityOptionTransactionSupplement>

Content model elements (30):

assetClass,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

componentSecurityIndexAnnexFallback,

equityEffectiveDate,

equityExercise (defined in EquityDerivativeBase complexType),

equityPremium (defined in EquityDerivativeShortFormBase complexType),

exchangeLookAlike (in equityOptionTransactionSupplement),

exchangeTradedContractNearest (in equityOptionTransactionSupplement),

extraordinaryEvents (in equityOptionTransactionSupplement),

feature (defined in Feature.model group),

fxFeature (defined in Feature.model group),

localJurisdiction (in equityOptionTransactionSupplement),

methodOfAdjustment (in equityOptionTransactionSupplement),

multipleExchangeIndexAnnexFallback,

multiplier (in equityOptionTransactionSupplement),

notional (defined in EquityDerivativeBase complexType),

numberOfOptions (defined in EquityDerivativeShortFormBase complexType),

optionEntitlement (in equityOptionTransactionSupplement),

optionType (defined in EquityDerivativeBase complexType),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

spotPrice (defined in EquityDerivativeShortFormBase complexType),

strategyFeature (defined in EquityDerivativeBase complexType),

strike (defined in EquityDerivativeShortFormBase complexType),

underlyer (defined in EquityDerivativeBase complexType)

May be included in elements by substitutions (20):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionExpiry defined in OptionsEventsBase.model group),

physicalSettlement (defined in OptionExercise complexType),

resultingTrade (defined in TradeChangeBase complexType),

resultingTrade (in physicalSettlement defined in OptionExercise complexType),

strategy,

trade (defined in DataDocument complexType),

trade (defined in TradeAmendmentContent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (defined in TradingEventsBase.model group),

trade (in affectedTransactions),

trade (in approvalStatusNotification),

trade (in clearingStatusItem)

Annotation

A component describing an Equity Option Transaction Supplement.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="equityOptionTransactionSupplement" substitutionGroup="product" type="EquityOptionTransactionSupplement"/>
