complexType "RegulatorReportProductInformation"

Namespace:	http://www.fpml.org/FpML-5/recordkeeping
Content:	complex, 21 elements
Defined:	globally in fpml-recordkeeping-processes-5-9.xsd; see XML source
Includes:	definitions of 5 elements
Used:	at 1 location

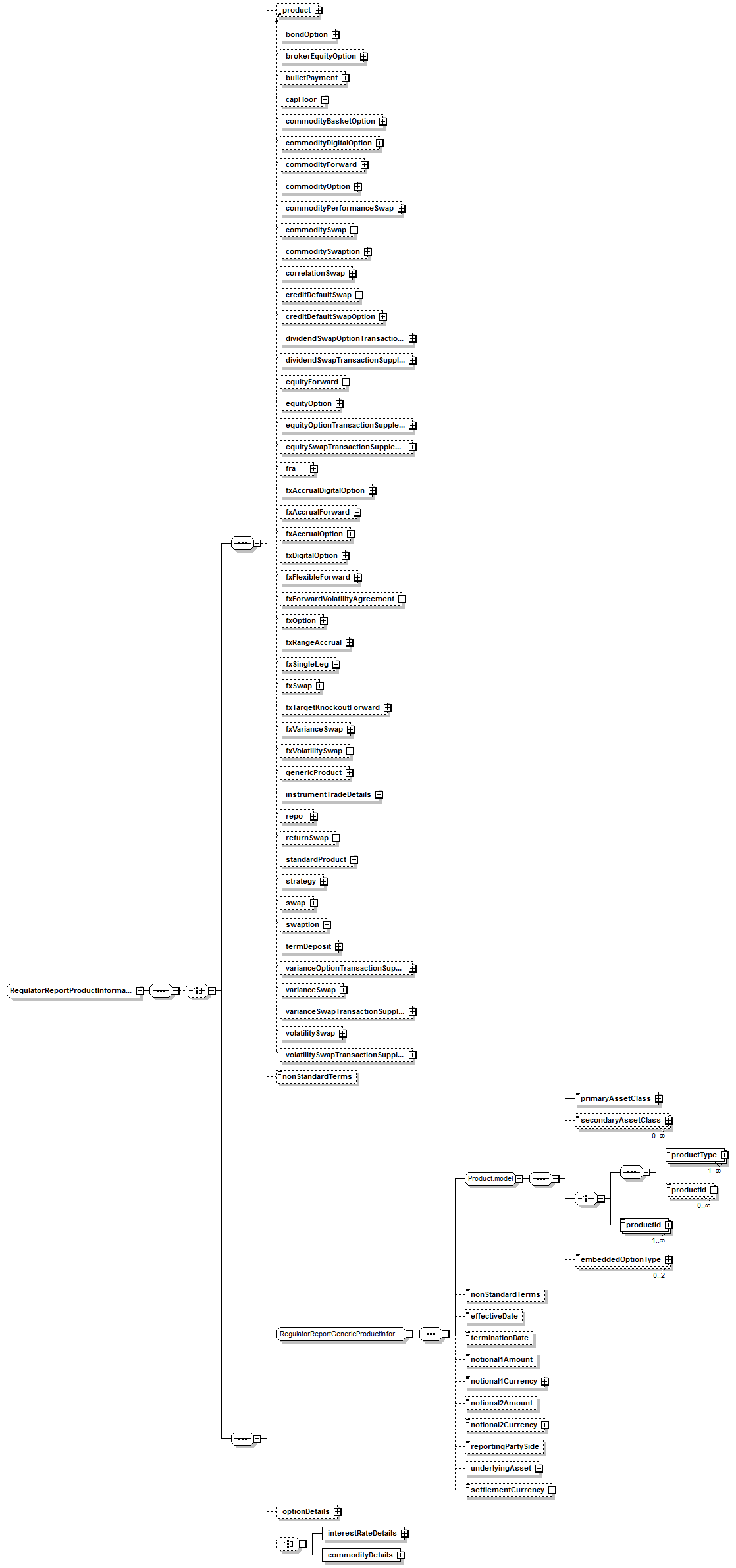

Content Model Diagram

XML Representation Summary

<...>

Content:

((product?, nonStandardTerms?) | (primaryAssetClass, secondaryAssetClass*, ((productType+, productId*) | productId+), embeddedOptionType[0..2], nonStandardTerms?, effectiveDate?, terminationDate?, notional1Amount?, notional1Currency?, notional2Amount?, notional2Currency?, reportingPartySide?, underlyingAsset?, settlementCurrency?, optionDetails?, (interestRateDetails | commodityDetails)?))?

</...>

Content Model Elements (21):

commodityDetails (in productInformation),

effectiveDate (in productInformation),

embeddedOptionType,

interestRateDetails,

nonStandardTerms (in productInformation),

primaryAssetClass (defined in Product.model group),

product,

productId (defined in Product.model group),

productType (defined in Product.model group),

reportingPartySide,

secondaryAssetClass (defined in Product.model group),

settlementCurrency (in productInformation),

terminationDate (in productInformation),

underlyingAsset (in productInformation)

All Direct / Indirect Based Elements (1):

productInformation

Known Usage Locations

As direct type of elements (1):

productInformation

XML Source (see within schema source)

<xsd:complexType name="RegulatorReportProductInformation">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:sequence>

<xsd:element minOccurs="0" ref="product"/>

<xsd:element minOccurs="0" name="nonStandardTerms" type="xsd:boolean"/>

</xsd:sequence>

<xsd:sequence>

<xsd:group ref="RegulatorReportGenericProductInformation.model"/>

<xsd:element minOccurs="0" name="optionDetails" type="RegulatorReportOptionDetails"/>

<xsd:choice minOccurs="0">

<xsd:element name="interestRateDetails" type="RegulatorReportInterestRateDetails"/>

<xsd:element name="commodityDetails" type="RegulatorReportCommodityDetails"/>

</xsd:choice>

</xsd:sequence>

</xsd:choice>

</xsd:sequence>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 5/21)

commodityDetails

Type:

RegulatorReportCommodityDetails, complex content

XML Source (see within schema source)

<xsd:element name="commodityDetails" type="RegulatorReportCommodityDetails"/>

interestRateDetails

Type:

RegulatorReportInterestRateDetails, complex content

XML Source (see within schema source)

<xsd:element name="interestRateDetails" type="RegulatorReportInterestRateDetails"/>

nonStandardTerms

Type:

xsd:boolean, predefined, simple content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="nonStandardTerms" type="xsd:boolean"/>

optionDetails

Type:

RegulatorReportOptionDetails, complex content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="optionDetails" type="RegulatorReportOptionDetails"/>

product

Type:	Product, complex content
Abstract:	(may not be used directly in instance XML documents)
Subst.Gr:	may be substituted with 48 elements

XML Source (see within schema source)

<xsd:element minOccurs="0" ref="product"/>
