element <approvalStatusNotification> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ApprovalStatusNotification
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-confirmation-processes-5-9.xsd; see XML source
Used:
never

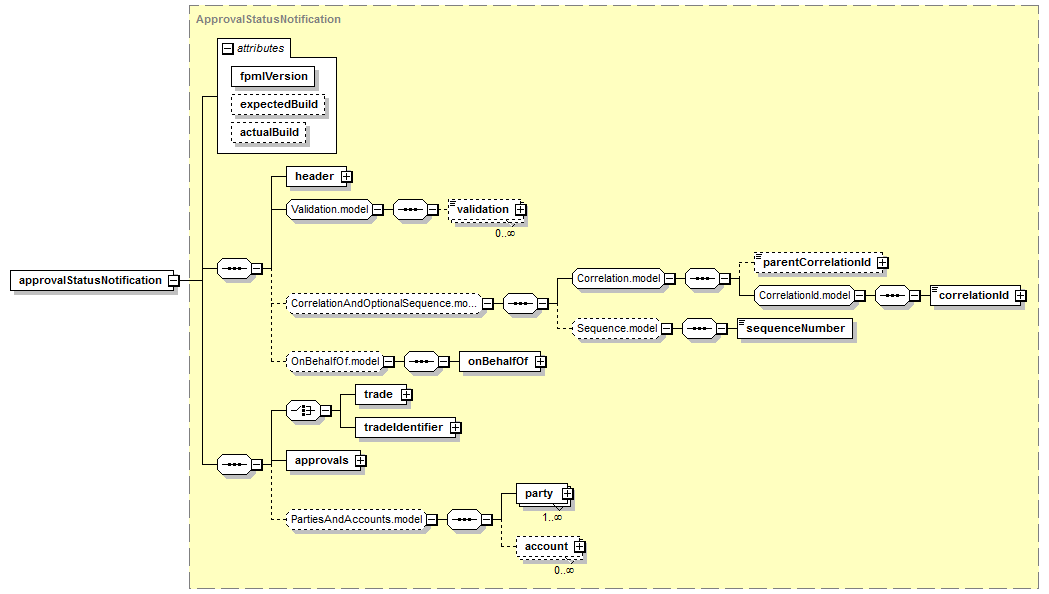

Content Model Diagram
XML Representation Summary
<approvalStatusNotification

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"6"

>

Content:
header, validation*, (parentCorrelationId?, correlationId, sequenceNumber?)?, onBehalfOf?, (trade | tradeIdentifier), approvals, (party+, account*)?
</approvalStatusNotification>
Content model elements (11):
header (defined in NotificationMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
sequenceNumber (defined in Sequence.model group),
XML Source (see within schema source)
<xsd:element name="approvalStatusNotification" type="ApprovalStatusNotification"/>
