group "ClearingResults.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
12 elements
Defined:
globally in fpml-confirmation-processes-5-2.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

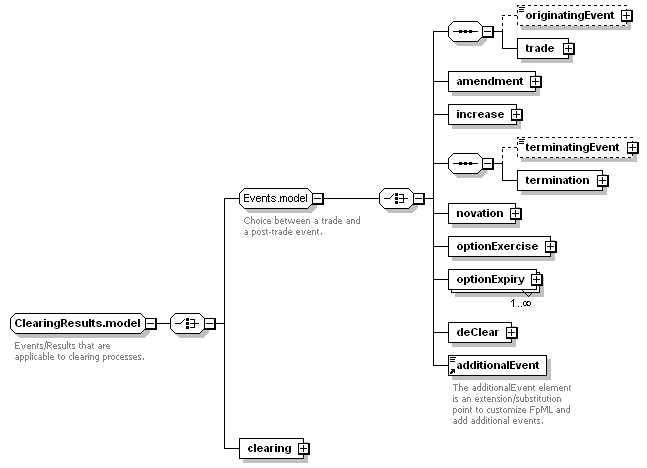

Content Model Diagram
Complex Content Model
(originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | optionExercise | optionExpiry+ | deClear | additionalEvent | clearing
Content Model Elements (12):
additionalEvent, optionExercise,
optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
terminatingEvent (defined in Events.model group),
trade (defined in Events.model group)
Known Usage Locations
Annotation
Events/Results that are applicable to clearing processes.
XML Source (w/o annotations (2); see within schema source)
<xsd:group name="ClearingResults.model">
<xsd:choice>
<xsd:group ref="Events.model"/>
<xsd:element name="clearing" type="Clearing"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/12)
clearing
Type:
Clearing, complex content
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="clearing" type="Clearing"/>
