group "EventsOrInfo.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
12 elements
Defined:
globally in fpml-confirmation-processes-5-2.xsd; see XML source
Used:
at 2 locations

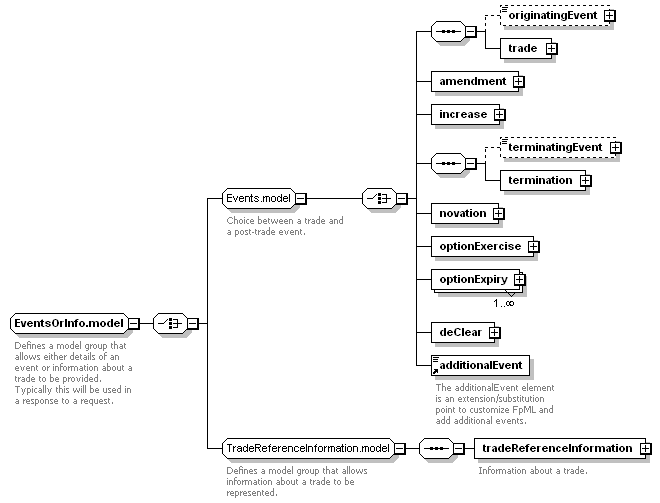

Content Model Diagram
Complex Content Model
(originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | optionExercise | optionExpiry+ | deClear | additionalEvent | tradeReferenceInformation
Content Model Elements (12):
additionalEvent, optionExpiry (defined in Events.model group),
originatingEvent (defined in Events.model group),
terminatingEvent (defined in Events.model group),
trade (defined in Events.model group),
Known Usage Locations
Annotation
Defines a model group that allows either details of an event or information about a trade to be provided. Typically this will be used in a response to a request.
XML Source (w/o annotations (1); see within schema source)
<xsd:group name="EventsOrInfo.model">
<xsd:choice>
<xsd:group ref="Events.model"/>
<xsd:group ref="TradeReferenceInformation.model"/>
</xsd:choice>
</xsd:group>
