element <fxSingleLeg> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxSingleLeg
Content:
complex, 1 attribute, 11 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-fx-5-2.xsd; see XML source
Used:
never

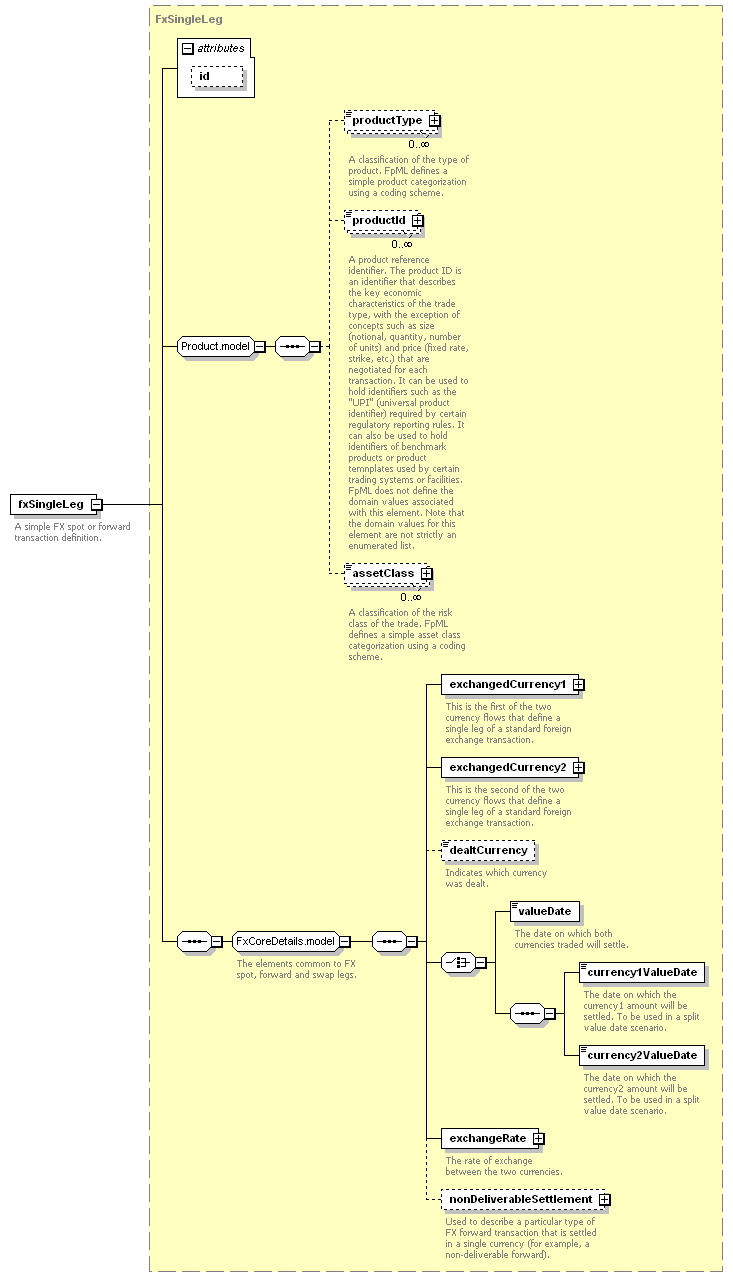

Content Model Diagram
XML Representation Summary
<fxSingleLeg

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, exchangedCurrency1, exchangedCurrency2, dealtCurrency?, (valueDate | (currency1ValueDate, currency2ValueDate)), exchangeRate, nonDeliverableSettlement?
</fxSingleLeg>
Content model elements (11):
assetClass,
currency1ValueDate,
currency2ValueDate,
dealtCurrency,
exchangedCurrency1,
exchangedCurrency2,
exchangeRate,
nonDeliverableSettlement (defined in FxCoreDetails.model group),
productId (defined in Product.model group),
productType (defined in Product.model group),
valueDate (defined in FxCoreDetails.model group)
May be included in elements by substitutions (14):
newTrade (in novation),
oldTrade (defined in TradeChangeContent complexType),
 strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
A simple FX spot or forward transaction definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="fxSingleLeg" substitutionGroup="product" type="FxSingleLeg"/>
