element <termDeposit> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
TermDeposit
Content:
complex, 1 attribute, 15 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-fx-5-2.xsd; see XML source
Used:
never

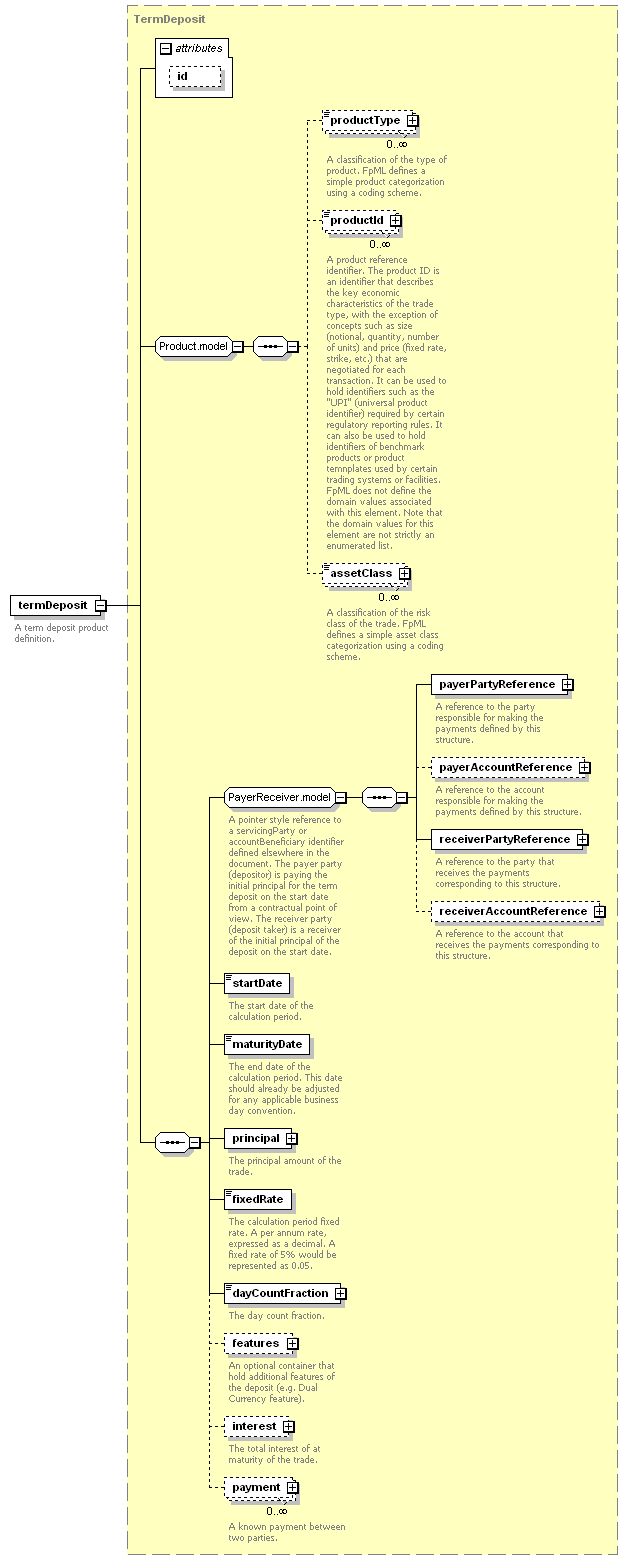

Content Model Diagram
XML Representation Summary
<termDeposit

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, payerPartyReference, payerAccountReference?, receiverPartyReference, receiverAccountReference?, startDate, maturityDate, principal, fixedRate, dayCountFraction, features?, interest?, payment*
</termDeposit>
Content model elements (15):
assetClass, payment (in termDeposit),
productId (defined in Product.model group),
productType (defined in Product.model group),
May be included in elements by substitutions (14):
newTrade (in novation),
oldTrade (defined in TradeChangeContent complexType),
 strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
A term deposit product definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="termDeposit" substitutionGroup="product" type="TermDeposit"/>
