element <swaption> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Swaption
Content:
complex, 1 attribute, 15 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-ird-5-2.xsd; see XML source
Used:
never

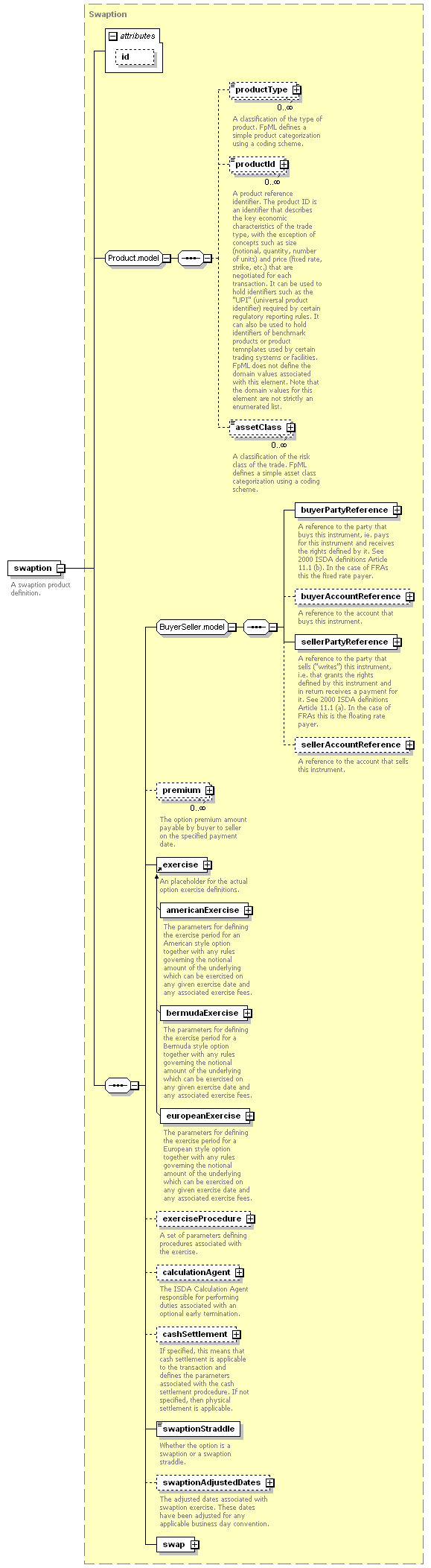

Content Model Diagram
XML Representation Summary
<swaption

id
 =
 xsd:ID
    >

Content:
 productType*, productId*, assetClass*, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?, premium*, exercise, exerciseProcedure?, calculationAgent?, cashSettlement?, swaptionStraddle, swaptionAdjustedDates?, swap
</swaption>
Content model elements (15):
assetClass, productId (defined in Product.model group),
productType (defined in Product.model group),
May contain elements by substitutions (3):
americanExercise, bermudaExercise, europeanExercise
May be included in elements by substitutions (14):
newTrade (in novation),
oldTrade (defined in TradeChangeContent complexType),
 strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
Annotation
A swaption product definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="swaption" substitutionGroup="product" type="Swaption"/>
