complexType "BusinessEventIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definitions of 1 attribute, 1 element
Used:
at 13 locations

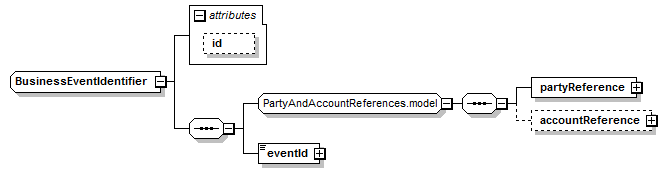

Content Model Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, accountReference?, eventId
</...>
Content Model Elements (3):
accountReference (defined in PartyAndAccountReferences.model group),
eventId,
partyReference (defined in PartyAndAccountReferences.model group)
Known Direct Subtypes (1):
BusinessEventGroupIdentifier
All Direct / Indirect Based Elements (15):
businessEventGroupId (defined in LoanEvent complexType),
businessEventGroupId (in prepaymentNotificationRetracted),
businessEventGroupId (in rolloverNotificationRetracted),
eventIdentifier (defined in AbstractEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
eventIdentifier (in accrualOptionChangeNotificationRetracted),
eventIdentifier (in accruingFeeChangeNotificationRetracted),
eventIdentifier (in accruingFeePaymentNotificationRetracted),
eventIdentifier (in accruingPikPaymentNotificationRetracted),
eventIdentifier (in facilityNotificationRetracted),
eventIdentifier (in facilityRateChangeNotificationRetracted),
eventIdentifier (in lcNotificationRetracted),
eventIdentifier (in loanContractNotificationRetracted),
eventIdentifier (in nonRecurringFeePaymentNotificationRetracted),
previousInaccurateEventId
Known Usage Locations
Annotation
A type defining an event identifier issued by the indicated party.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BusinessEventIdentifier">
<xsd:sequence>
<xsd:group ref="PartyAndAccountReferences.model"/>
<xsd:element name="eventId" type="EventId"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 1/3)
eventId
Type:
EventId, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (see within schema source)
<xsd:element name="eventId" type="EventId"/>
