complexType "BusinessEventGroupIdentifier"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 4 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 3 locations

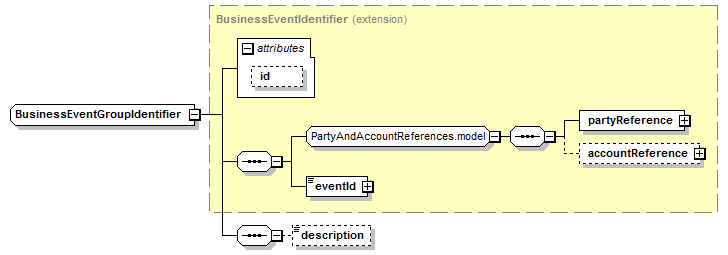

Content Model Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
partyReference, accountReference?, eventId, description?
</...>
Content Model Elements (4):
accountReference (defined in PartyAndAccountReferences.model group),
description (defined in BusinessEventGroupIdentifier complexType),
eventId,
partyReference (defined in PartyAndAccountReferences.model group)
All Direct / Indirect Based Elements (3):
businessEventGroupId (defined in LoanEvent complexType),
Known Usage Locations
Annotation
An identifier used to group different business events. This mechanism allows various events to be loosely coupled with each other.
Type Definition Detail
Type Derivation Tree
BusinessEventIdentifier (extension)
  BusinessEventGroupIdentifier
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="BusinessEventGroupIdentifier">
<xsd:complexContent>
<xsd:extension base="BusinessEventIdentifier">
<xsd:sequence>
<xsd:element minOccurs="0" name="description" type="xsd:normalizedString"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
description
Type:
xsd:normalizedString, predefined, simple content
A short description of the combination of business events that make up the event group.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="description" type="xsd:normalizedString"/>
