element <optionExpiry> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
OptionExpiry
Content:
complex, 7 elements
Defined:
locally within OptionsEventsBase.model group in fpml-business-events-5-8.xsd; see XML source

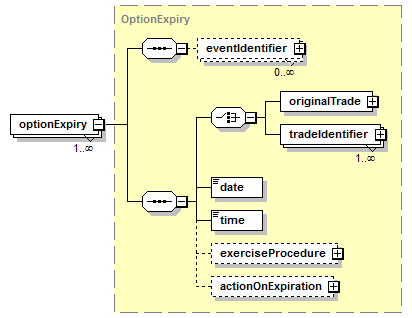

Content Model Diagram
XML Representation Summary
<optionExpiry>

Content:
eventIdentifier*, (originalTrade | tradeIdentifier+), date, time, exerciseProcedure?, actionOnExpiration?
</optionExpiry>
Content model elements (7):
actionOnExpiration,
date (in optionExpiry defined in OptionsEventsBase.model group),
eventIdentifier (defined in AbstractEvent complexType),
exerciseProcedure (in optionExpiry defined in OptionsEventsBase.model group),
originalTrade (in optionExpiry defined in OptionsEventsBase.model group),
time (in optionExpiry defined in OptionsEventsBase.model group),
tradeIdentifier (in optionExpiry defined in OptionsEventsBase.model group)
Included in content model of elements (9):
allegedEvent, assertedEvent, confirmationAgreed, confirmationDisputed, executionAdvice, executionAdviceRetracted, executionNotification, optionExpirationNotification, proposedMatch
Annotation
A structure describing an option expiring event (i.e. passing its last exercise time and becoming worthless.)
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="optionExpiry" type="OptionExpiry"/>
XML schema documentation generated with DocFlex/XML 1.10b5 using DocFlex/XML XSDDoc 2.8.1 template set. All content model diagrams generated by Altova XMLSpy via DocFlex/XML XMLSpy Integration.
