element <confirmationAgreed> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	ConfirmationAgreed
Content:	complex, 3 attributes, 21 elements
Defined:	globally in fpml-confirmation-processes-5-8.xsd; see XML source
Used:	never

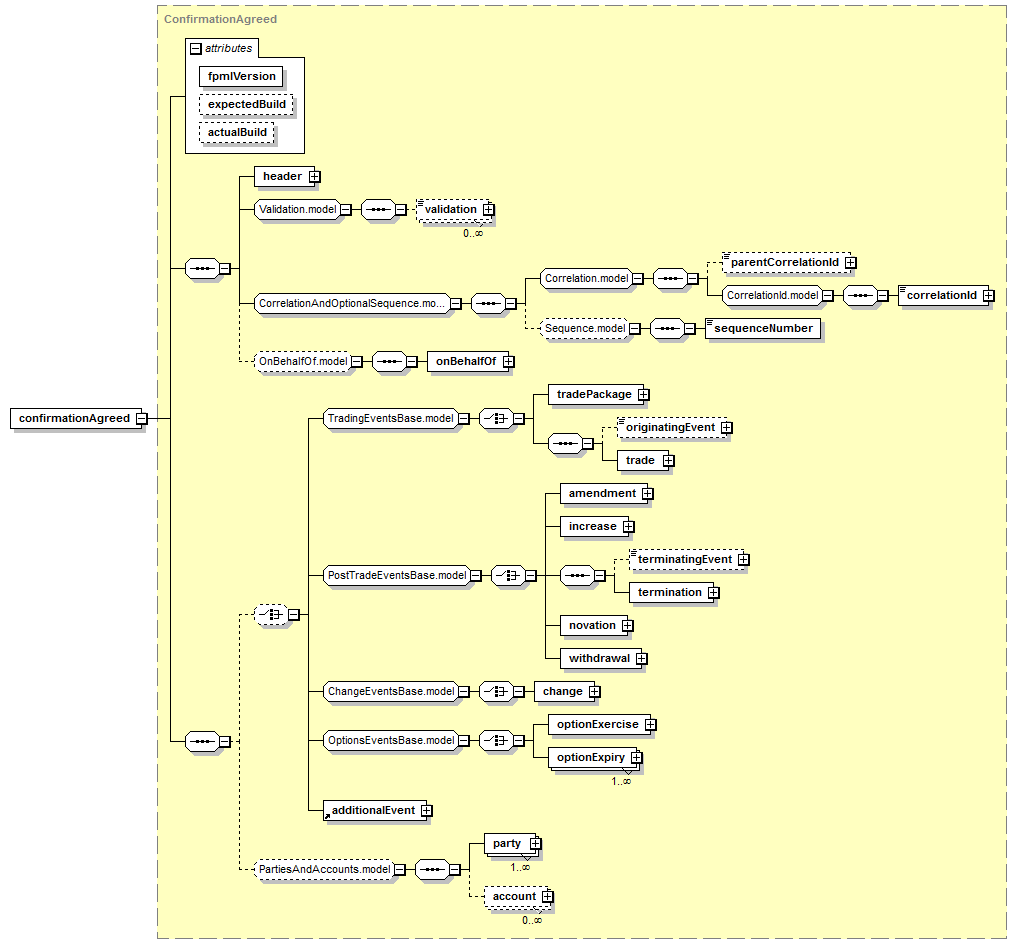

Content Model Diagram

XML Representation Summary

<confirmationAgreed

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"9"

Content:

</confirmationAgreed>

Content model elements (21):

account,

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

change (defined in ChangeEventsBase.model group),

correlationId,

header (defined in ResponseMessage complexType),

increase,

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise (defined in OptionsEventsBase.model group),

optionExpiry (defined in OptionsEventsBase.model group),

originatingEvent (defined in TradingEventsBase.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group),

validation,

withdrawal

Annotation

The confirmationAgreed message is sent when the matching process returns a proposed match (trade or event) and the Confirmation Requester agrees with it.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="confirmationAgreed" type="ConfirmationAgreed"/>
