element <commodityForward> (global)
Namespace:
Type:
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
may substitute for element product
Defined:
globally in fpml-com-5-8.xsd; see XML source
Used:

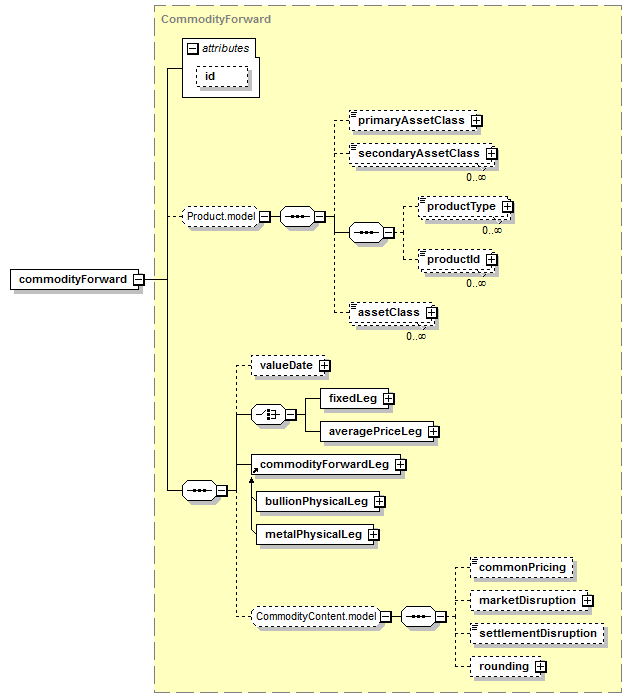

Content Model Diagram
XML Representation Summary
<commodityForward

 =
xsd:ID

>

Content:
</commodityForward>
Content model elements (13):
productId (defined in Product.model group),
productType (defined in Product.model group),
rounding (defined in CommodityContent.model group),
Included in content model of elements (1):
commodityOption
May contain elements by substitutions (2):
bullionPhysicalLeg, metalPhysicalLeg
May be included in elements by substitutions (20):
feeTrade,
newTrade,
oldTrade (defined in TradeChangeContent complexType),
oldTrade (in novation),
originalTrade (defined in OptionExercise complexType),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExpiry defined in OptionsEventsBase.model group),
physicalSettlement (defined in OptionExercise complexType),
resultingTrade (defined in TradeChangeBase complexType),
resultingTrade (in physicalSettlement defined in OptionExercise complexType),
strategy,
trade (defined in DataDocument complexType),
trade (defined in TradeAmendmentContent complexType),
trade (defined in TradeChangeContent complexType),
trade (defined in TradeOrInfo.model group),
trade (defined in TradePackage complexType),
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in approvalStatusNotification),
trade (in clearingStatusItem)
Known Usage Locations
Annotation
Defines a commodity forward product.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityForward" substitutionGroup="product" type="CommodityForward"/>
