complexType "ConfirmationDisputed"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 3 attributes, 22 elements
Defined:	globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

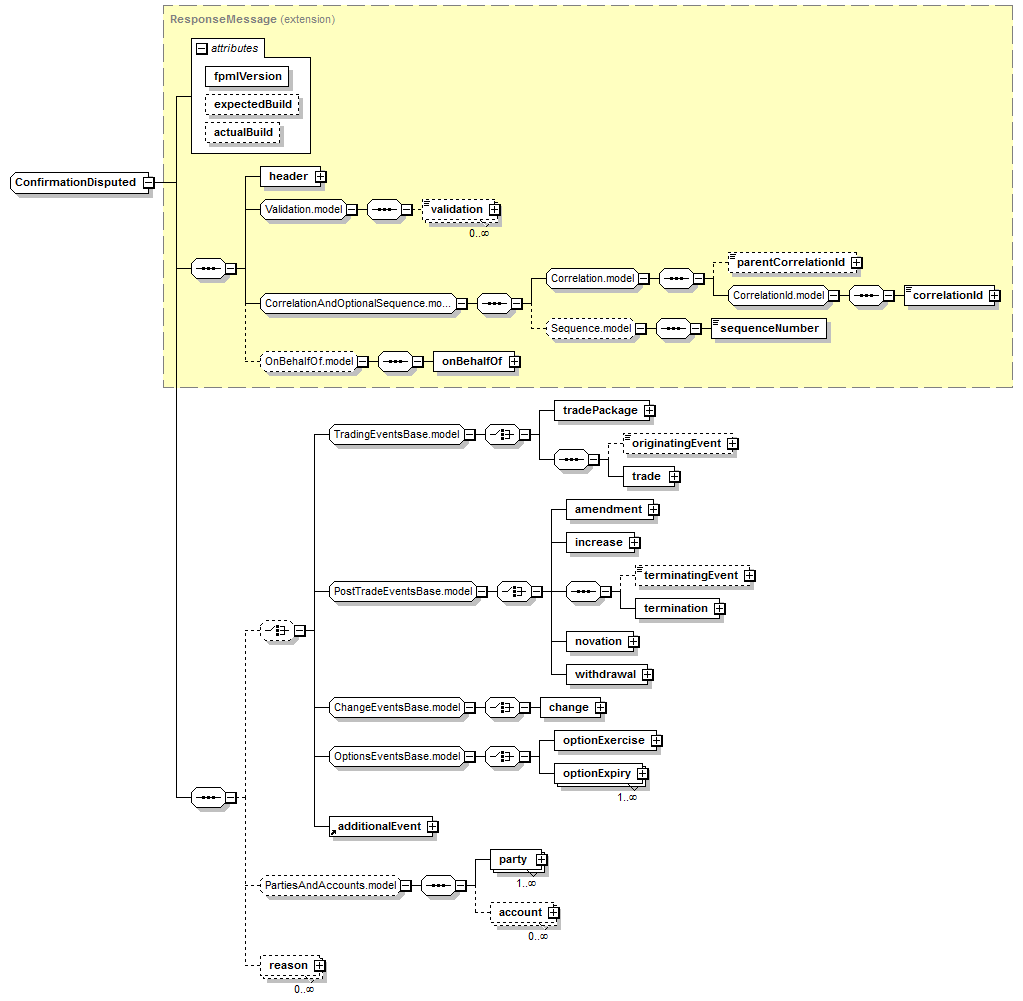

Content Model Diagram

XML Representation Summary

<...

fpmlVersion	=	xsd:token
expectedBuild	=	xsd:positiveInteger
actualBuild	=	"9"

Content:

</...>

Content Model Elements (22):

account,

additionalEvent,

amendment (defined in PostTradeEventsBase.model group),

change (defined in ChangeEventsBase.model group),

correlationId,

header (defined in ResponseMessage complexType),

increase,

novation,

onBehalfOf (defined in OnBehalfOf.model group),

optionExercise (defined in OptionsEventsBase.model group),

optionExpiry (defined in OptionsEventsBase.model group),

originatingEvent (defined in TradingEventsBase.model group),

parentCorrelationId,

party (defined in PartiesAndAccounts.model group),

reason (in confirmationDisputed),

sequenceNumber (defined in Sequence.model group),

terminatingEvent (defined in PostTradeEventsBase.model group),

termination (defined in PostTradeEventsBase.model group),

trade (defined in TradingEventsBase.model group),

tradePackage (defined in TradingEventsBase.model group),

validation,

withdrawal

All Direct / Indirect Based Elements (1):

confirmationDisputed

Known Usage Locations

As direct type of elements (1):

confirmationDisputed

Annotation

A message indicating that a confirmation has not been agreed by a counterparty.

Type Definition Detail

Type Derivation Tree

Document (extension)

Message (extension)

ResponseMessage (extension)

ConfirmationDisputed

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="ConfirmationDisputed">

<xsd:complexContent>

<xsd:extension base="ResponseMessage">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:group ref="TradingEventsBase.model"/>

<xsd:group ref="PostTradeEventsBase.model"/>

<xsd:group ref="ChangeEventsBase.model"/>

<xsd:group ref="OptionsEventsBase.model"/>

<xsd:element ref="additionalEvent"/>

</xsd:choice>

<xsd:group minOccurs="0" ref="PartiesAndAccounts.model"/>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/22)

additionalEvent

Type:	AdditionalEvent, complex content
Abstract:	(may not be used directly in instance XML documents)

XML Source (see within schema source)

<xsd:element ref="additionalEvent"/>

reason

Type:

Reason, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="reason" type="Reason"/>
