complexType "ExecutionNotification"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 attributes, 17 elements
Defined:
globally in fpml-confirmation-processes-5-8.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 2 locations

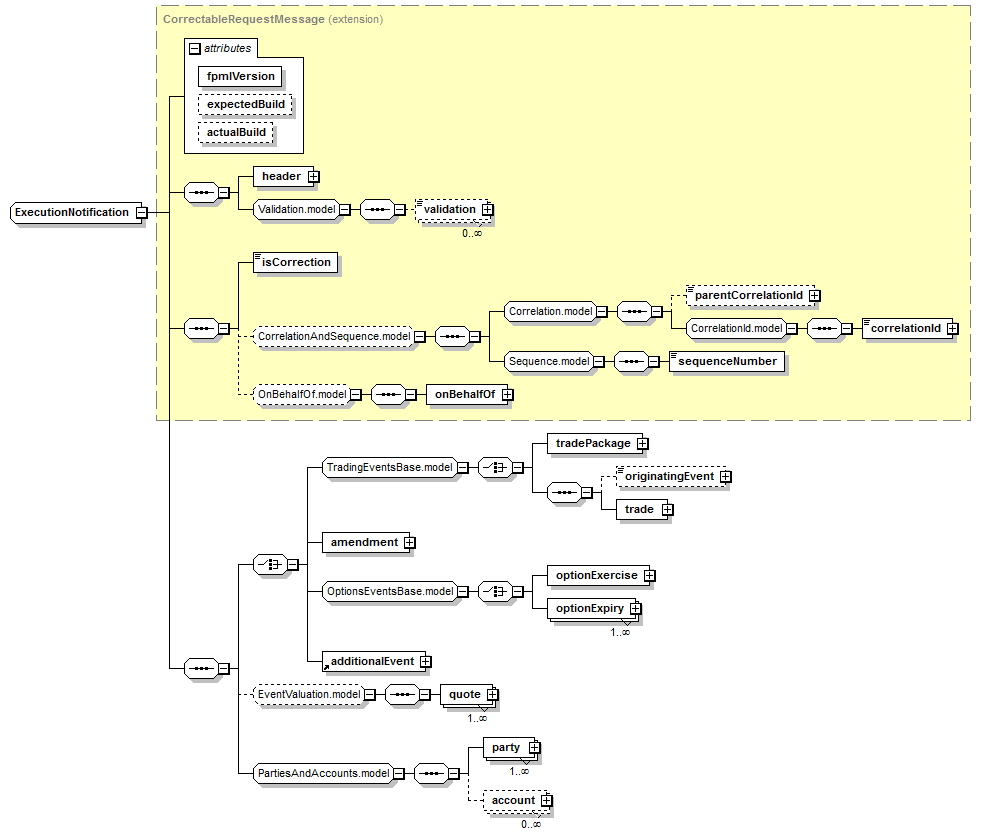

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"9"

>

Content:
header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf?, (tradePackage | (originatingEvent?, trade) | amendment | optionExercise | optionExpiry+ | additionalEvent), quote+?, party+, account*
</...>
Content Model Elements (17):
amendment (defined in ExecutionNotification complexType),
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
party (defined in PartiesAndAccounts.model group),
quote (defined in EventValuation.model group),
sequenceNumber (defined in Sequence.model group),
trade (defined in TradingEventsBase.model group),
All Direct / Indirect Based Elements (2):
executionNotification, optionExpirationNotification
Known Usage Locations
Annotation
A message notifying a party that a trade execution has occurred. (Typically this is sent by an execution platform to a participant.)
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              ExecutionNotification
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ExecutionNotification">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:choice>
<xsd:group ref="TradingEventsBase.model"/>
<xsd:element name="amendment" type="TradeAmendmentContent"/>
<xsd:group ref="OptionsEventsBase.model"/>
<xsd:element ref="additionalEvent"/>
</xsd:choice>
<xsd:group minOccurs="0" ref="EventValuation.model"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/17)
additionalEvent
Type:
AdditionalEvent, complex content
Abstract:
(may not be used directly in instance XML documents)
XML Source (see within schema source)
<xsd:element ref="additionalEvent"/>
amendment
Type:
TradeAmendmentContent, complex content
XML Source (see within schema source)
<xsd:element name="amendment" type="TradeAmendmentContent"/>
