element <versionedTradeId> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
VersionedTradeId
Content:
complex, 3 elements
Defined:
locally within TradeIdentifier complexType in fpml-doc-5-8.xsd; see XML source

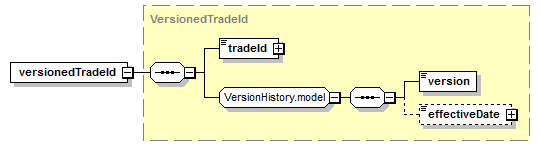

Content Model Diagram
XML Representation Summary
<versionedTradeId>

Content:
tradeId, version, effectiveDate?
</versionedTradeId>
Content model elements (3):
version (defined in VersionHistory.model group)
Included in content model of elements (33):
allocationTradeId (defined in PartyTradeIdentifier complexType),
allocationTradeId (in allocation),
blockTradeId,
blockTradeIdentifier (in allocationApproved),
blockTradeIdentifier (in allocationRefused),
blockTradeIdentifier (in requestAllocation),
blockTradeIdentifier (in requestAllocationRetracted),
feeTradeIdentifier,
newTradeIdentifier,
oldTradeIdentifier (defined in TradeChangeContent complexType),
oldTradeIdentifier (in novation),
originatingTradeId (defined in PartyTradeIdentifier complexType),
originatingTradeIdentifier,
partyTradeIdentifier (defined in Portfolio complexType),
partyTradeIdentifier (in clearingEligibility),
partyTradeIdentifier (in tradeHeader),
partyTradeIdentifier (in tradeReference),
partyTradeIdentifier (in tradeReferenceInformation),
partyTradeIdentifier (in verificationStatusNotification),
partyTradeIdentifier (in withdrawal),
replacementTradeIdentifier,
resultingTradeIdentifier,
tradeIdentifier (defined in DeClear complexType),
tradeIdentifier (defined in EventIdentifier complexType),
tradeIdentifier (defined in OptionExercise complexType),
tradeIdentifier (defined in TradeChangeBase complexType),
tradeIdentifier (defined in TradePackage complexType),
tradeIdentifier (in approvalStatusNotification),
tradeIdentifier (in clearingStatusItem),
tradeIdentifier (in optionExpiry defined in OptionsEventsBase.model group),
tradeIdentifier (in optionExpiry in maturityNotification),
tradeIdentifier (in tradeChangeAdviceRetracted),
tradeIdentifier (in tradeMaturity)
Annotation
A trade identifier accompanied by a version number. In regulatory reporting views, this should be avoided except for internal mnessaging.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="versionedTradeId" type="VersionedTradeId"/>
