complexType "AccruingPikOption"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 6 elements
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Used:	at 2 locations

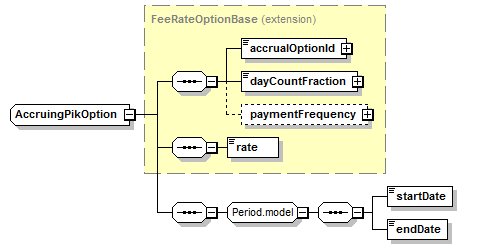

Content Model Diagram

XML Representation Summary

<...>

Content:

</...>

Content Model Elements (6):

endDate (defined in Period.model group),

rate (defined in FeeRateOptionBase complexType),

All Direct / Indirect Based Elements (2):

Known Usage Locations

Annotation

Represents the accruing PIK option associated within a facility.

Type Definition Detail

Type Derivation Tree

AccruingPikOption

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="AccruingPikOption">

<xsd:complexContent>

<xsd:extension base="FeeRateOptionBase">

<xsd:sequence>

<xsd:group ref="Period.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
