complexType "AccruingPikOptionChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

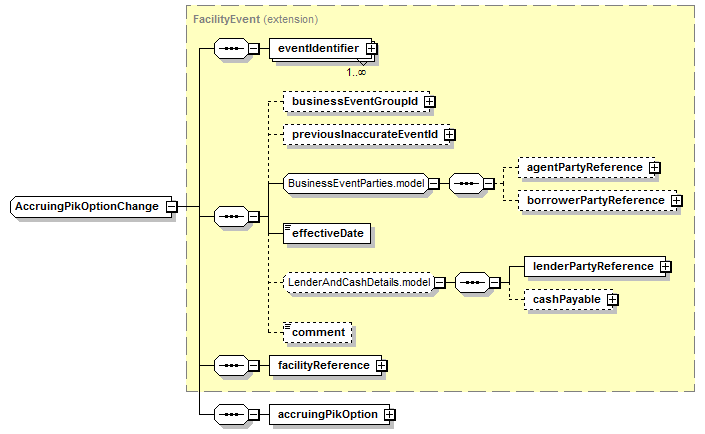

Content Model Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, accruingPikOption
</...>
Content Model Elements (11):
accruingPikOption (defined in AccruingPikOptionChange complexType),
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId (defined in LoanEvent complexType),
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityEvent complexType),
lenderPartyReference,
previousInaccurateEventId
All Direct / Indirect Based Elements (2):
accruingPikOptionChange (in accrualOptionChangeNotification),
accruingPikOptionChange (in accrualOptionChangeNotificationRetracted)
Known Usage Locations
Annotation
An event representing a change in a PIK accrual option. In real terms - an example of this would be a margin rate change.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityEvent (extension)
          AccruingPikOptionChange
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="AccruingPikOptionChange">
<xsd:complexContent>
<xsd:extension base="FacilityEvent">
<xsd:sequence>
<xsd:element name="accruingPikOption" type="AccruingPikOption"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/11)
accruingPikOption
Type:
AccruingPikOption, complex content
The latest version of the acccruing PIK option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="accruingPikOption" type="AccruingPikOption"/>
