complexType "PenaltyRateChange"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 12 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Used:
at 1 location

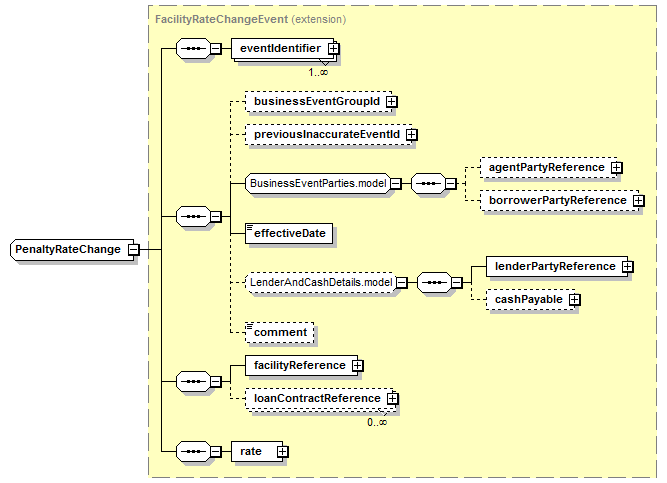

Content Model Diagram
XML Representation Summary
<...>

Content:
eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, loanContractReference*, rate
</...>
Content Model Elements (12):
agentPartyReference (defined in BusinessEventParties.model group),
borrowerPartyReference (defined in BusinessEventParties.model group),
businessEventGroupId (defined in LoanEvent complexType),
cashPayable,
comment,
effectiveDate (defined in LoanEvent complexType),
eventIdentifier (defined in AbstractEventRequireId complexType),
facilityReference (defined in FacilityContractEvent complexType),
lenderPartyReference,
loanContractReference (defined in FacilityContractEvent complexType),
previousInaccurateEventId,
rate (defined in FacilityRateChangeEvent complexType)
All Direct / Indirect Based Elements (1):
penaltyRateChange
Known Usage Locations
Annotation
An event representing a change in the penalty rate applicable to outstanding loans.
Type Definition Detail
Type Derivation Tree
AbstractEventRequireId (extension)
  LoanEvent (extension)
      FacilityContractEvent (extension)
          FacilityRateChangeEvent (extension)
              PenaltyRateChange
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="PenaltyRateChange">
<xsd:complexContent>
<xsd:extension base="FacilityRateChangeEvent"/>
</xsd:complexContent>
</xsd:complexType>
