complexType "FacilityRateChangeEvent"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 12 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-loan-5-8.xsd; see XML source
Includes:	definition of 1 element
Used:	at 3 locations

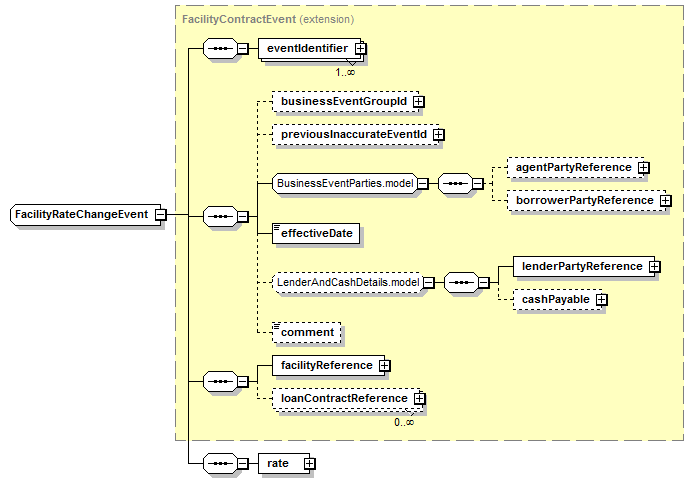

Content Model Diagram

XML Representation Summary

<...>

Content:

eventIdentifier+, businessEventGroupId?, previousInaccurateEventId?, agentPartyReference?, borrowerPartyReference?, effectiveDate, (lenderPartyReference, cashPayable?)?, comment?, facilityReference, loanContractReference*, rate

</...>

Content Model Elements (12):

agentPartyReference (defined in BusinessEventParties.model group),

borrowerPartyReference (defined in BusinessEventParties.model group),

businessEventGroupId (defined in LoanEvent complexType),

cashPayable,

comment,

effectiveDate (defined in LoanEvent complexType),

eventIdentifier (defined in AbstractEventRequireId complexType),

facilityReference (defined in FacilityContractEvent complexType),

lenderPartyReference,

loanContractReference (defined in FacilityContractEvent complexType),

previousInaccurateEventId,

rate (defined in FacilityRateChangeEvent complexType)

Known Direct Subtypes (3):

DefaultRateChange, MandatoryCostRateChange, PenaltyRateChange

All Direct / Indirect Based Elements (3):

defaultRateChange, mandatoryCostRateChange, penaltyRateChange

Known Usage Locations

In derivations of other global types (3):

DefaultRateChange (as extension base),

MandatoryCostRateChange (as extension base),

PenaltyRateChange (as extension base)

Annotation

An event describing changes in a facility-level rate.

Type Definition Detail

Type Derivation Tree

AbstractEventRequireId (extension)

LoanEvent (extension)

FacilityContractEvent (extension)

FacilityRateChangeEvent

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType abstract="true" name="FacilityRateChangeEvent">

<xsd:complexContent>

<xsd:extension base="FacilityContractEvent">

<xsd:sequence>

<xsd:element name="rate" type="PeriodRate"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/12)

rate

Type:

PeriodRate, complex content

This represents a 'surcharge' rate that may apply in addition to a regular margin (on outstanding loan contracts).

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="rate" type="PeriodRate"/>
