complexType "PeriodRate"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-loan-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 6 locations

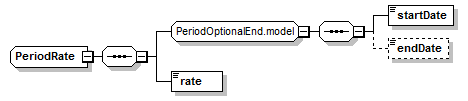

Content Model Diagram
XML Representation Summary
<...>

Content:
startDate, endDate?, rate
</...>
Content Model Elements (3):
endDate (defined in PeriodOptionalEnd.model group),
rate (defined in PeriodRate complexType),
All Direct / Indirect Based Elements (6):
capRate (defined in RateLimits complexType),
floorRate (defined in RateLimits complexType),
rate (defined in FacilityRateChangeEvent complexType)
Known Usage Locations
Annotation
Represents a rate applicable against a well-defined or open-ended period.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="PeriodRate">
<xsd:sequence>
<xsd:group ref="PeriodOptionalEnd.model"/>
<xsd:element name="rate" type="xsd:decimal"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/3)
rate
Type:
xsd:decimal, predefined, simple content
XML Source (see within schema source)
<xsd:element name="rate" type="xsd:decimal"/>
