complexType "TradeNovationContent"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 34 elements
Defined:
globally in fpml-business-events-5-10.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

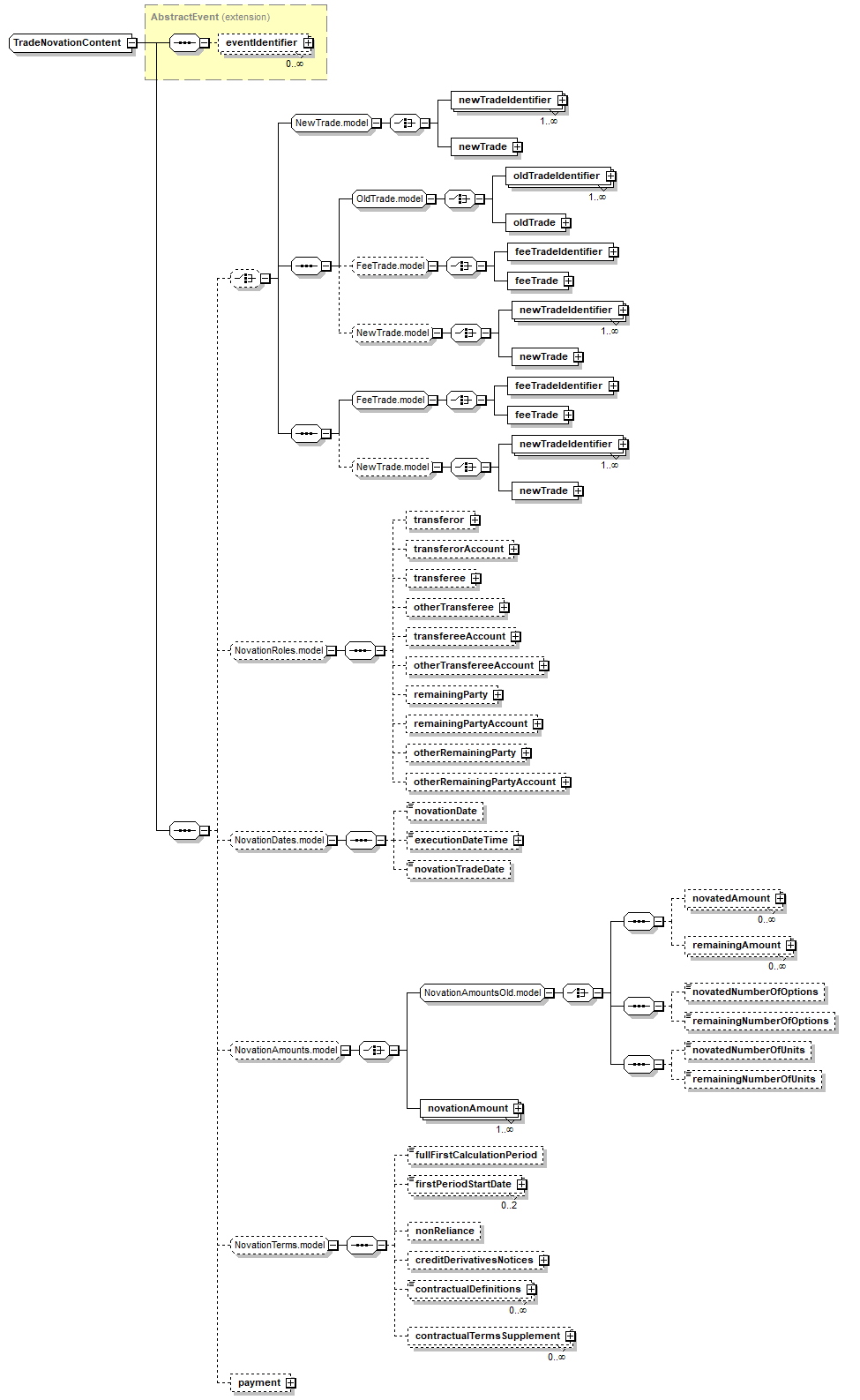

Content Model Diagram
XML Representation Summary
<...>

Content:
eventIdentifier*, (newTradeIdentifier+ | newTrade | ((oldTradeIdentifier+ | oldTrade), (feeTradeIdentifier | feeTrade)?, (newTradeIdentifier+ | newTrade)?) | ((feeTradeIdentifier | feeTrade), (newTradeIdentifier+ | newTrade)?))?, (transferor?, transferorAccount?, transferee?, otherTransferee?, transfereeAccount?, otherTransfereeAccount?, remainingParty?, remainingPartyAccount?, otherRemainingParty?, otherRemainingPartyAccount?)?, (novationDate?, executionDateTime?, novationTradeDate?)?, ((novatedAmount*, remainingAmount*) | (novatedNumberOfOptions?, remainingNumberOfOptions?) | (novatedNumberOfUnits?, remainingNumberOfUnits?) | novationAmount+)?, (fullFirstCalculationPeriod?, firstPeriodStartDate[0..2], nonReliance?, creditDerivativesNotices?, contractualDefinitions*, contractualTermsSupplement*)?, payment?
</...>
Content Model Elements (34):
contractualDefinitions (defined in NovationTerms.model group),
contractualTermsSupplement (defined in NovationTerms.model group),
creditDerivativesNotices,
eventIdentifier (defined in AbstractEvent complexType),
executionDateTime (defined in NovationDates.model group),
feeTrade,
feeTradeIdentifier,
firstPeriodStartDate (defined in NovationTerms.model group),
fullFirstCalculationPeriod,
newTrade,
newTradeIdentifier,
nonReliance (defined in NovationTerms.model group),
novatedAmount,
novatedNumberOfOptions,
novatedNumberOfUnits,
novationAmount,
novationDate,
novationTradeDate,
oldTrade (defined in OldTrade.model group),
oldTradeIdentifier (defined in OldTrade.model group),
otherRemainingParty,
otherRemainingPartyAccount,
otherTransferee,
otherTransfereeAccount,
payment (defined in TradeNovationContent complexType),
remainingAmount,
remainingNumberOfOptions,
remainingNumberOfUnits,
remainingParty,
remainingPartyAccount,
transferee,
transfereeAccount,
transferor,
transferorAccount
All Direct / Indirect Based Elements (2):
novation (defined in Events.model group),
Known Usage Locations
Annotation
A structure describing a novation.
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  TradeNovationContent
XML Source (w/o annotations (7); see within schema source)
<xsd:complexType name="TradeNovationContent">
<xsd:complexContent>
<xsd:extension base="AbstractEvent">
<xsd:sequence>
<xsd:choice minOccurs="0">
<xsd:group ref="NewTrade.model"/>
<xsd:sequence>
<xsd:group ref="OldTrade.model"/>
<xsd:group minOccurs="0" ref="FeeTrade.model"/>
<xsd:group minOccurs="0" ref="NewTrade.model"/>
</xsd:sequence>
<xsd:sequence>
<xsd:group ref="FeeTrade.model"/>
<xsd:group minOccurs="0" ref="NewTrade.model"/>
</xsd:sequence>
</xsd:choice>
<xsd:group minOccurs="0" ref="NovationRoles.model"/>
<xsd:group minOccurs="0" ref="NovationDates.model"/>
<xsd:group minOccurs="0" ref="NovationAmounts.model"/>
<xsd:group minOccurs="0" ref="NovationTerms.model"/>
<xsd:element minOccurs="0" name="payment" type="Payment"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/34)
payment
Type:
Payment, complex content
Describes a payment made in settlement of the novation.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="payment" type="Payment"/>
