element <optionEvent> (local)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
OptionEvent
Content:
complex, 7 elements
Defined:
locally within OptionsEventsBase.model group in fpml-business-events-5-10.xsd; see XML source

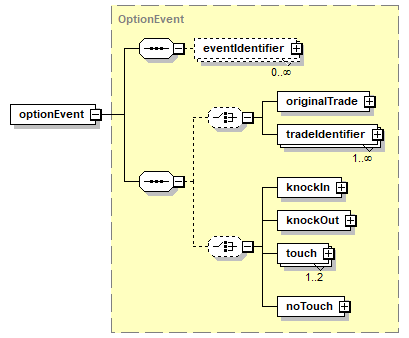

Content Model Diagram
XML Representation Summary
<optionEvent>

Content:
eventIdentifier*, (originalTrade | tradeIdentifier+)?, (knockIn | knockOut | touch[1..2] | noTouch)?
</optionEvent>
Content model elements (7):
eventIdentifier (defined in AbstractEvent complexType),
Included in content model of elements (2):
nonpublicExecutionReport, nonpublicExecutionReportRetracted
Annotation
A structure describing knock in, knock out, touch and no touch events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="optionEvent" type="OptionEvent"/>
