element <nonpublicExecutionReport> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
NonpublicExecutionReport
Content:
complex, 3 attributes, 26 elements
Defined:
globally in fpml-recordkeeping-processes-5-10.xsd; see XML source
Used:
never

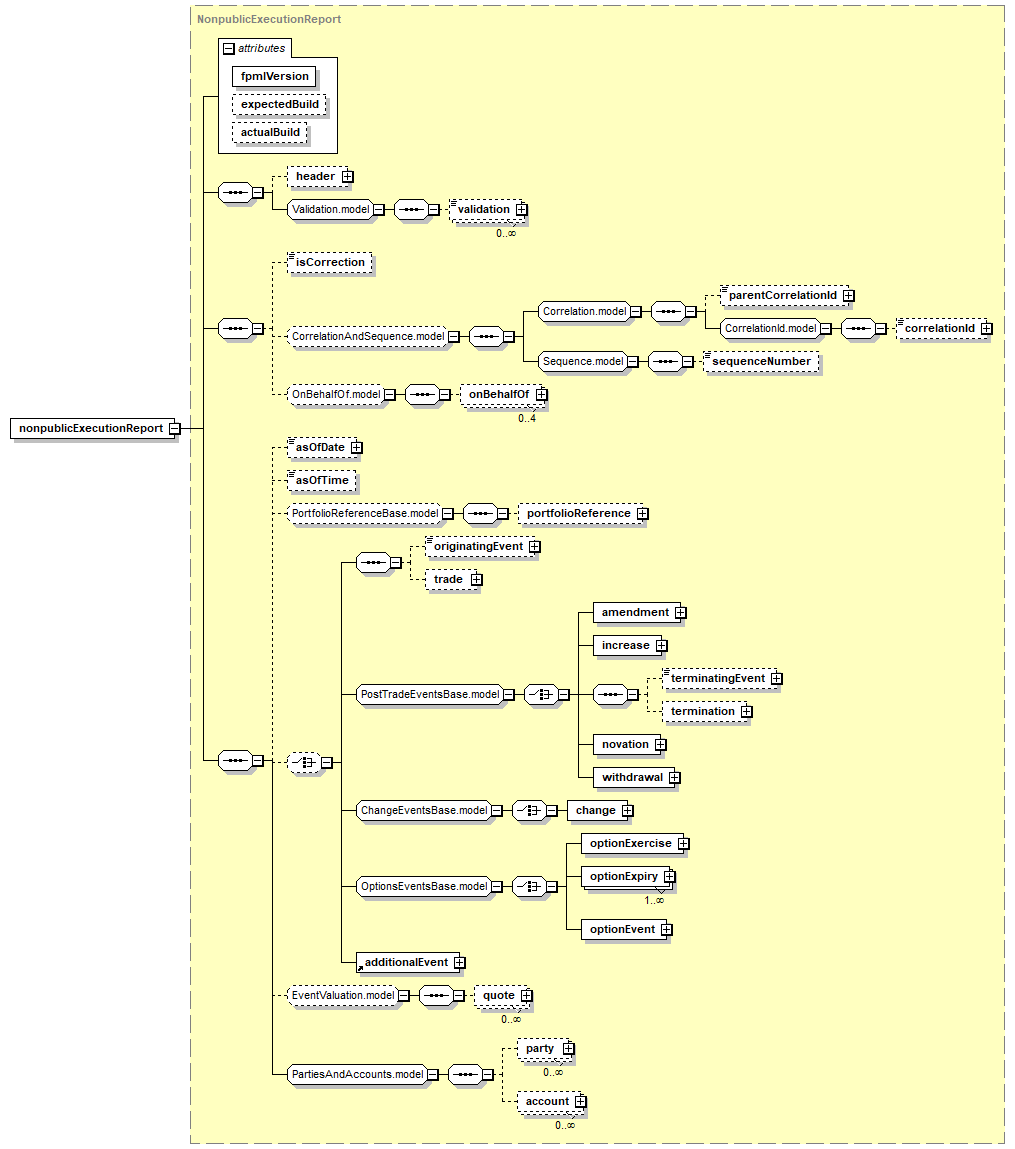

Content Model Diagram
XML Representation Summary
<nonpublicExecutionReport

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"5"

>

Content:
header?, validation*, isCorrection?, (parentCorrelationId?, correlationId?, sequenceNumber?)?, onBehalfOf[0..4]?, asOfDate?, asOfTime?, portfolioReference??, ((originatingEvent?, trade?) | amendment | increase | (terminatingEvent?, termination?) | novation | withdrawal | change | optionExercise | optionExpiry+ | optionEvent | additionalEvent)?, quote*?, party*, account*
</nonpublicExecutionReport>
Content model elements (26):
account,
additionalEvent,
amendment (defined in PostTradeEventsBase.model group),
asOfDate (in nonpublicExecutionReport),
asOfTime (in nonpublicExecutionReport),
change (defined in ChangeEventsBase.model group),
correlationId,
header (defined in RequestMessage complexType),
increase (defined in PostTradeEventsBase.model group),
isCorrection,
novation (defined in PostTradeEventsBase.model group),
onBehalfOf (defined in OnBehalfOf.model group),
optionEvent,
optionExercise (defined in OptionsEventsBase.model group),
optionExpiry (defined in OptionsEventsBase.model group),
originatingEvent (in nonpublicExecutionReport),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
portfolioReference (in nonpublicExecutionReport),
quote (in nonpublicExecutionReport),
sequenceNumber (defined in Sequence.model group),
terminatingEvent (defined in PostTradeEventsBase.model group),
termination (defined in PostTradeEventsBase.model group),
trade (in nonpublicExecutionReport),
validation,
withdrawal (defined in PostTradeEventsBase.model group)
XML Source (see within schema source)
<xsd:element name="nonpublicExecutionReport" type="NonpublicExecutionReport"/>
