group "QuotationCharacteristics.model"
Namespace:
Content:
Defined:
Includes:
definitions of 12 elements
Used:

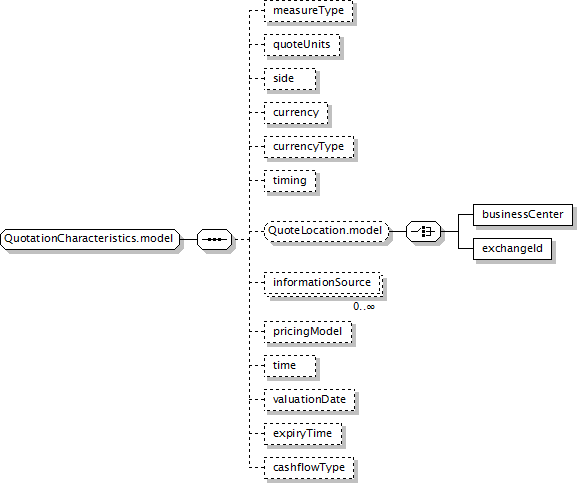

Component Diagram
Complex Content Model
Content Model Elements (14):
exchangeId (defined in QuoteLocation.model group),
Known Usage Locations
Annotation
A group collecting a set of characteristics that can be used to describe a quotation.
XML Source (w/o annotations (14); see within schema source)
<xsd:group name="QuotationCharacteristics.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="measureType" type="AssetMeasureType"/>
<xsd:element minOccurs="0" name="quoteUnits" type="PriceQuoteUnits"/>
<xsd:element minOccurs="0" name="side" type="QuotationSideEnum"/>
<xsd:element minOccurs="0" name="currency" type="Currency"/>
<xsd:element minOccurs="0" name="currencyType" type="ReportingCurrencyType"/>
<xsd:element minOccurs="0" name="timing" type="QuoteTiming"/>
<xsd:group minOccurs="0" ref="QuoteLocation.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="informationSource" type="InformationSource"/>
<xsd:element minOccurs="0" name="pricingModel" type="PricingModel"/>
<xsd:element minOccurs="0" name="time" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="valuationDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="expiryTime" type="xsd:dateTime"/>
<xsd:element minOccurs="0" name="cashflowType" type="CashflowType"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 12/14)
cashflowType
Type:
CashflowType, simple content
For cash flows, the type of the cash flows. Examples include: Coupon payment, Premium Fee, Settlement Fee, Brokerage Fee, etc.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="cashflowType" type="CashflowType"/>

currency
Type:
Currency, simple content
The optional currency that the measure is expressed in. If not supplied, this is defaulted from the reportingCurrency in the valuationScenarioDefinition.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="currency" type="Currency"/>

currencyType
Type:
ReportingCurrencyType, simple content
The optional currency that the measure is expressed in. If not supplied, this is defaulted from the reportingCurrency in the valuationScenarioDefinition.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="currencyType" type="ReportingCurrencyType"/>

expiryTime
Type:
xsd:dateTime, predefined, simple content
When does the quote cease to be valid.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="expiryTime" type="xsd:dateTime"/>

informationSource
Type:
InformationSource, complex content
The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="informationSource" type="InformationSource"/>

measureType
Type:
AssetMeasureType, simple content
The type of the value that is measured. This could be an NPV, a cash flow, a clean price, etc.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="measureType" type="AssetMeasureType"/>

pricingModel
Type:
PricingModel, simple content
.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="pricingModel" type="PricingModel"/>

quoteUnits
Type:
PriceQuoteUnits, simple content
The optional units that the measure is expressed in. If not supplied, this is assumed to be a price/value in currency units.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quoteUnits" type="PriceQuoteUnits"/>

side
Type:
QuotationSideEnum, simple content
The side (bid/mid/ask) of the measure.
Simple Content
enumeration of xsd:token
Enumeration:
"Bid"
 -
A value "bid" by a buyer for an asset, i.e. the value a buyer is willing to pay.
"Ask"
 -
A value "asked" by a seller for an asset, i.e. the value at which a seller is willing to sell.
"Mid"
 -
A value midway between the bid and the ask value.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="side" type="QuotationSideEnum"/>

time
Type:
xsd:dateTime, predefined, simple content
When the quote was observed or when a calculated value was generated.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="time" type="xsd:dateTime"/>

timing
Type:
QuoteTiming, simple content
When during a day the quote is for. Typically, if this element is supplied, the QuoteLocation needs also to be supplied.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="timing" type="QuoteTiming"/>

valuationDate
Type:
xsd:date, predefined, simple content
When the quote was computed.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="valuationDate" type="xsd:date"/>
