element <informationSource> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
InformationSource
Content:
complex, 3 elements
Defined:
locally within QuotationCharacteristics.model group in fpml-asset-5-13.xsd; see XML source

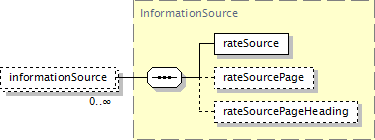

Component Diagram
XML Representation Summary
<informationSource>

Content:
rateSource, rateSourcePage?, rateSourcePageHeading?
</informationSource>
Content model elements (3):
rateSource (defined in InformationSource complexType),
rateSourcePage (defined in InformationSource complexType),
rateSourcePageHeading (defined in InformationSource complexType)
Included in content model of elements (10):
dataPoints,
point (in dataPoints),
quotationCharacteristics (defined in Price complexType),
quotationCharacteristics (in valuationSet),
quote (defined in EventValuation.model group),
quote (in assetQuote),
quote (in assetValuation),
quote (in pricing),
quote (in standardProduct),
sensitivityCharacteristics
Annotation
The information source where a published or displayed market rate will be obtained, e.g. Telerate Page 3750.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="informationSource" type="InformationSource"/>
