element <standardProduct> (global)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	StandardProduct
Content:	complex, 1 attribute, 7 elements
Subst.Gr:	substitutes for product
Defined:	globally in fpml-standard-5-13.xsd; see XML source
Used:	never

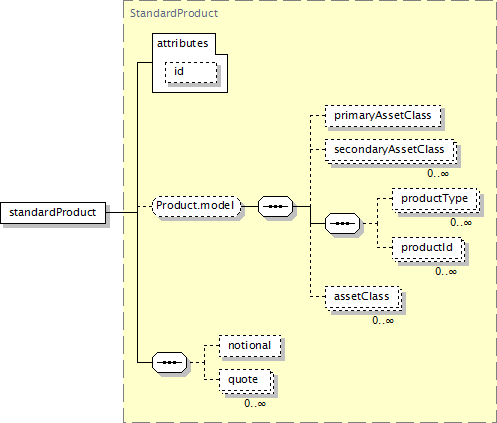

Component Diagram

XML Representation Summary

<standardProduct

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, notional?, quote*

</standardProduct>

Content model elements (7):

assetClass,

notional (in standardProduct),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

quote (in standardProduct),

secondaryAssetClass

May be included in elements by substitutions (24):

feeTrade,

newTrade,

oldTrade (defined in TradeChangeContent complexType),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

originalTrade (in optionEvent),

originalTrade (in optionExpiry defined in OptionsEventsBase.model group),

physicalSettlement (defined in OptionExercise complexType),

physicalSettlement (in noTouch),

physicalSettlement (in touch in optionEvent),

resultingTrade (defined in PhysicalSettlement complexType),

resultingTrade (defined in TradeChangeBase complexType),

strategy,

trade (defined in DataDocument complexType),

trade (defined in TradeAmendmentContent complexType),

trade (defined in TradeChangeContent complexType),

trade (defined in TradeOrInfo.model group),

trade (defined in TradePackage complexType),

trade (defined in TradingEventsBase.model group),

trade (in affectedTransactions),

trade (in approvalStatusNotification),

trade (in clearingStatusItem),

trade (in withdrawal)

Annotation

Deprecated: Standard product - for use in Transparency reporting to define a product that represents a standardized OTC derivative transaction whose economics do not need to be fully described using an FpML schema because they are implied by the product ID. In other views, standard products are present for convenience to support internal messaging and workflows that are cross-product. Standard products are not full trade representations as such they are not intended to be used for confirming trades.

XML Source (w/o annotations (1); see within schema source)

<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="The standardProduct has not been used in practice and is being deprecated to minimize the confusion with other available products." name="standardProduct" substitutionGroup="product" type="StandardProduct"/>
