group "NovationAmounts.model"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
7 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

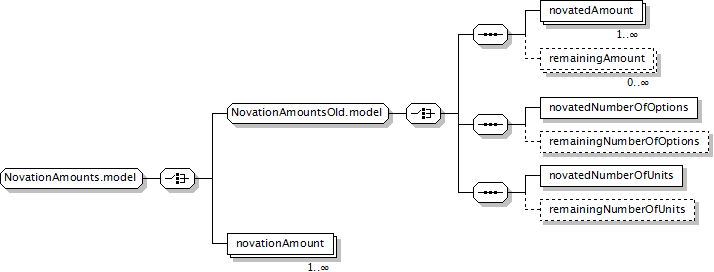

Component Diagram
Complex Content Model
(novatedAmount+, remainingAmount*) | (novatedNumberOfOptions, remainingNumberOfOptions?) | (novatedNumberOfUnits, remainingNumberOfUnits?) | novationAmount+
Content Model Elements (7):
novatedAmount, novatedNumberOfOptions, novatedNumberOfUnits, novationAmount, remainingAmount, remainingNumberOfOptions, remainingNumberOfUnits
Known Usage Locations
XML Source (see within schema source)
<xsd:group name="NovationAmounts.model">
<xsd:choice>
<xsd:group ref="NovationAmountsOld.model"/>
<xsd:element maxOccurs="unbounded" name="novationAmount" type="TradeLegSizeChange"/>
</xsd:choice>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 1/7)
novationAmount
Type:
TradeLegSizeChange, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="novationAmount" type="TradeLegSizeChange"/>
