element <loanAllocationEventGroup> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AbstractLoanAllocationEvent
Content:
complex, 8 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 7 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 8 locations

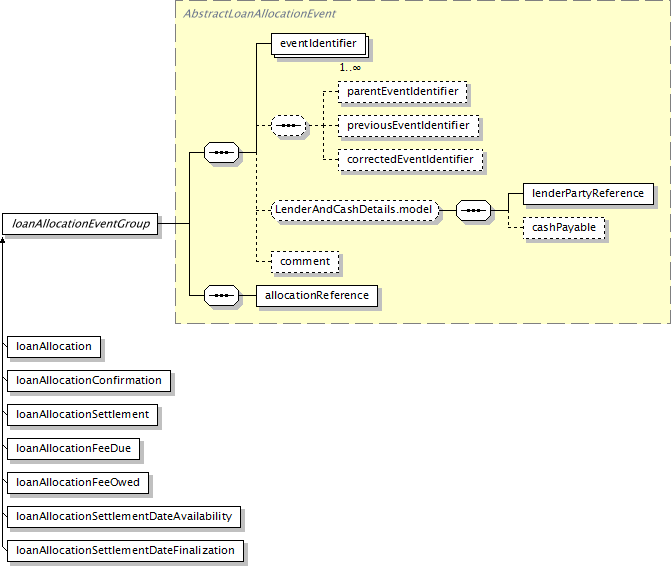

Component Diagram
XML Representation Summary
<loanAllocationEventGroup>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference
</loanAllocationEventGroup>
Content model elements (8):
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier
Included in content model of elements (1):
loanAllocationNotification
May be substituted with elements (7):
loanAllocation, loanAllocationConfirmation, loanAllocationFeeDue, loanAllocationFeeOwed, loanAllocationSettlement, loanAllocationSettlementDateAvailability, loanAllocationSettlementDateFinalization
Known Usage Locations
Annotation
Head of the substitution group for all loan trade allocation events.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="loanAllocationEventGroup" type="AbstractLoanAllocationEvent"/>
