element <loanAllocationFeeOwed> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
LoanAllocationTransferFeeOwed
Content:
complex, 11 elements
Subst.Gr:
substitutes for loanAllocationEventGroup
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
never

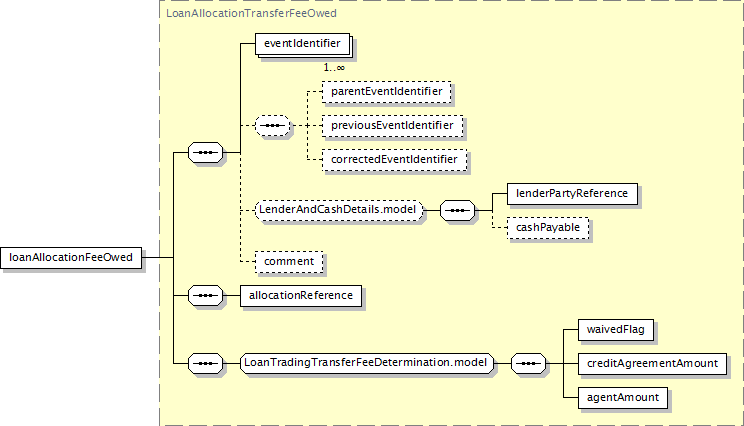

Component Diagram
XML Representation Summary
<loanAllocationFeeOwed>

Content:
eventIdentifier+, (parentEventIdentifier?, previousEventIdentifier?, correctedEventIdentifier?)?, (lenderPartyReference, cashPayable?)?, comment?, allocationReference, waivedFlag, creditAgreementAmount, agentAmount
</loanAllocationFeeOwed>
Content model elements (11):
agentAmount,
allocationReference (defined in AbstractLoanAllocationEvent complexType),
cashPayable,
comment (defined in AbstractLoanEvent complexType),
correctedEventIdentifier,
creditAgreementAmount,
eventIdentifier (defined in AbstractLoanEvent complexType),
lenderPartyReference (defined in LenderAndCashDetails.model group),
parentEventIdentifier,
previousEventIdentifier,
waivedFlag
May be included in elements by substitutions (1):
loanAllocationNotification
XML Source (see within schema source)
<xsd:element name="loanAllocationFeeOwed" substitutionGroup="loanAllocationEventGroup" type="LoanAllocationTransferFeeOwed"/>
