element <dealFxRate> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
FxTerms
Content:
complex, 4 elements
Defined:
locally within FacilityCommitment.model group in fpml-loan-5-13.xsd; see XML source

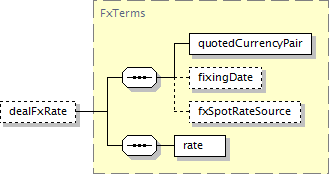

Component Diagram
XML Representation Summary
<dealFxRate>

Content:
quotedCurrencyPair, fixingDate?, fxSpotRateSource?, rate
</dealFxRate>
Content model elements (4):
fixingDate (defined in FxFixing complexType),
fxSpotRateSource (defined in FxFixing complexType),
quotedCurrencyPair (defined in FxFixing complexType),
rate (defined in FxTerms complexType)
Included in content model of elements (6):
delayedDraw, facilityGroup, facilitySummary, letterOfCreditFacility, revolver, termLoan
Annotation
Defines the exchange rate between the facility and deal denomination currencies (only required if the currencies are different).
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="dealFxRate" type="FxTerms"/>
