element <revolver> (global)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Revolver
Content:
complex, 1 attribute, 30 elements
Subst.Gr:
substitutes for facilityGroup
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
never

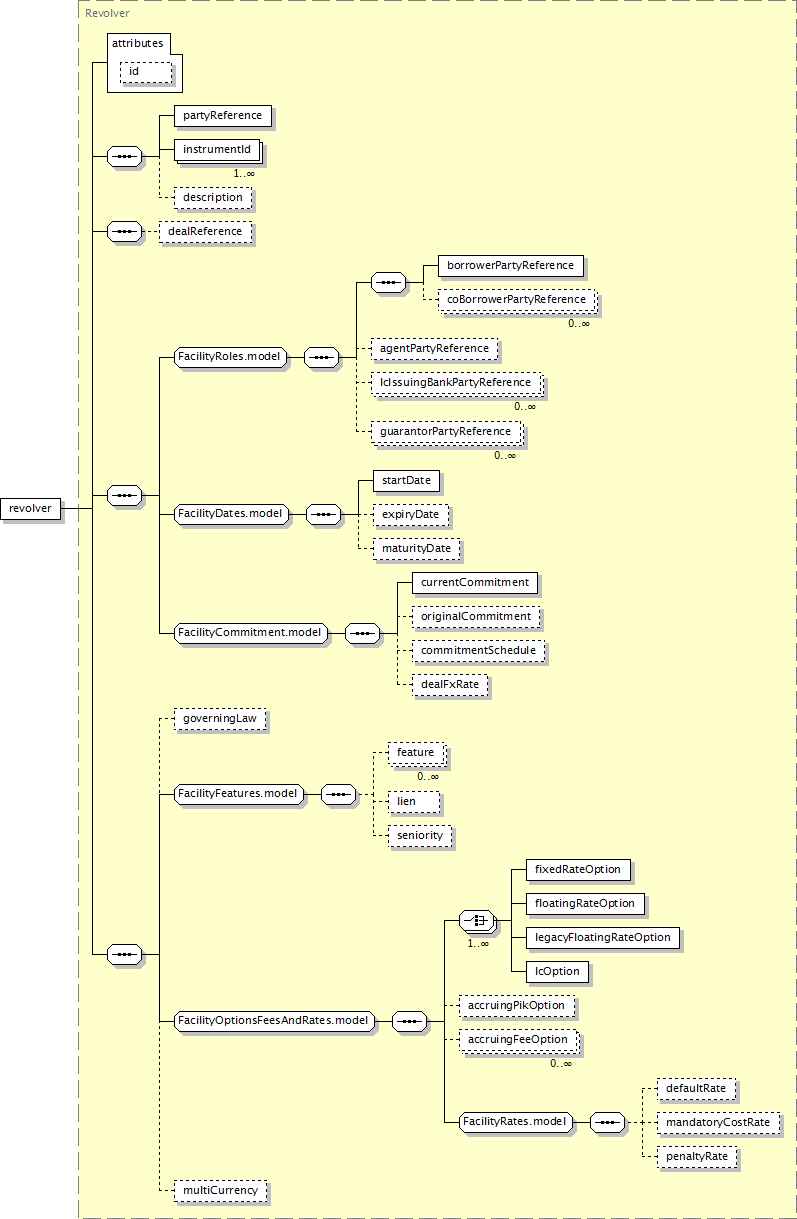

Component Diagram
XML Representation Summary
<revolver

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?, dealReference?, borrowerPartyReference, coBorrowerPartyReference*, agentPartyReference?, lcIssuingBankPartyReference*, guarantorPartyReference*, startDate, expiryDate?, maturityDate?, currentCommitment, originalCommitment?, commitmentSchedule?, dealFxRate?, governingLaw?, feature*, lien?, seniority?, (fixedRateOption | floatingRateOption | legacyFloatingRateOption | lcOption)+, accruingPikOption?, accruingFeeOption*, defaultRate?, mandatoryCostRate?, penaltyRate?, multiCurrency?
</revolver>
Content model elements (30):
accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),
accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),
agentPartyReference (defined in FacilityRoles.model group),
borrowerPartyReference (defined in FacilityRoles.model group),
coBorrowerPartyReference,
commitmentSchedule (defined in FacilityCommitment.model group),
currentCommitment,
dealFxRate,
dealReference (defined in FacilityIdentifier complexType),
defaultRate,
description (defined in IdentifiedAssetWithParty complexType),
expiryDate (defined in FacilityDates.model group),
feature (defined in FacilityFeatures.model group),
fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),
floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
governingLaw (defined in AbstractFacility complexType),
guarantorPartyReference (defined in FacilityRoles.model group),
instrumentId (defined in IdentifiedAssetWithParty complexType),
lcIssuingBankPartyReference,
lcOption (defined in FacilityOptionsFeesAndRates.model group),
legacyFloatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
lien (defined in FacilityFeatures.model group),
mandatoryCostRate (defined in FacilityRates.model group),
maturityDate (defined in FacilityDates.model group),
multiCurrency,
originalCommitment,
partyReference (defined in IdentifiedAssetWithParty complexType),
penaltyRate,
seniority (defined in FacilityFeatures.model group),
startDate (defined in FacilityDates.model group)
May be included in elements by substitutions (4):
deal (in dealStatement),
deal (in loanLegalActionStatement),
facilityStatement,
loanLegalActionStatement
Annotation
A revolver facility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="revolver" substitutionGroup="facilityGroup" type="Revolver"/>
