element <facilityGroup> (global abstract)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AbstractFacility
Content:
complex, 1 attribute, 30 elements
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 4 elements
Defined:
globally in fpml-loan-5-13.xsd; see XML source
Used:
at 7 locations

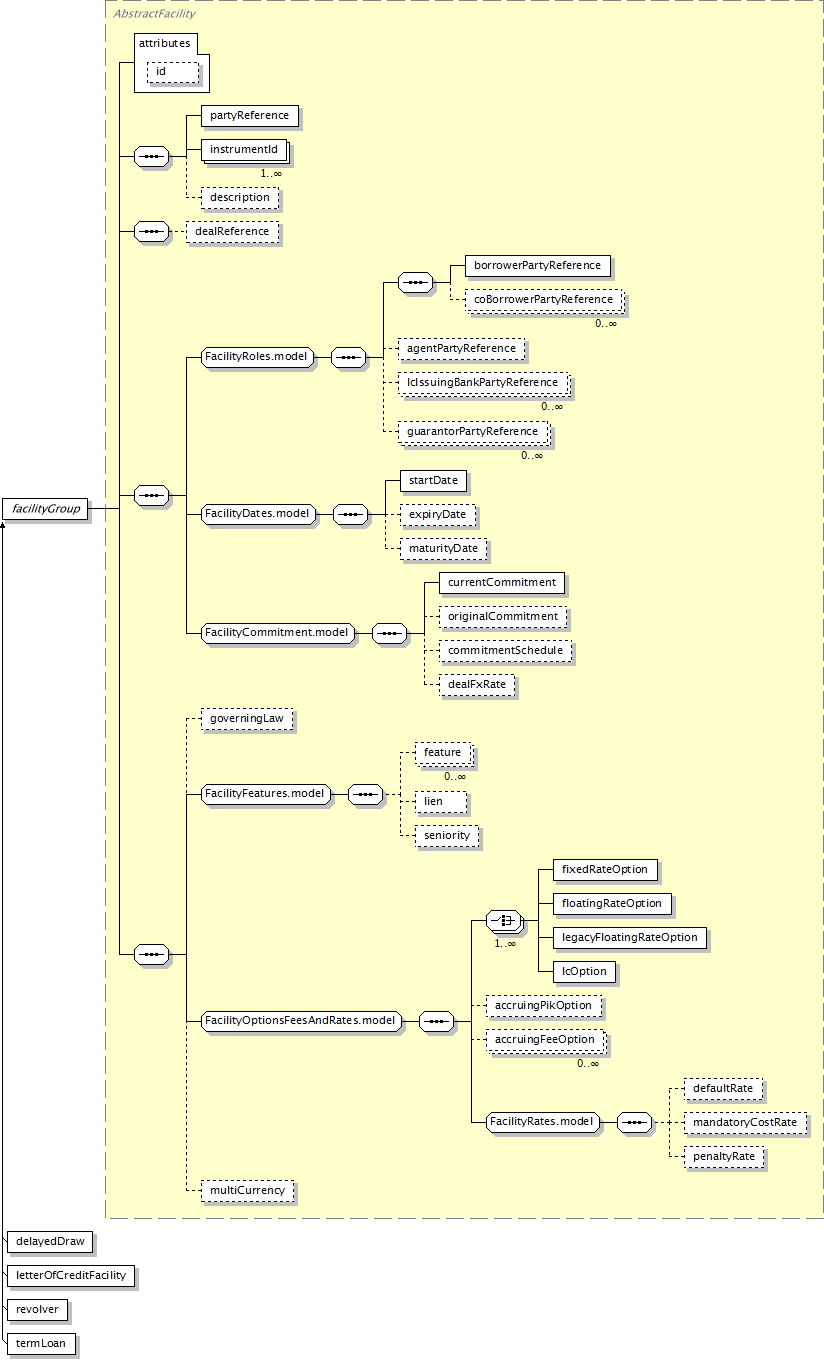

Component Diagram
XML Representation Summary
<facilityGroup

id
 =
xsd:ID

>

Content:
partyReference, instrumentId+, description?, dealReference?, borrowerPartyReference, coBorrowerPartyReference*, agentPartyReference?, lcIssuingBankPartyReference*, guarantorPartyReference*, startDate, expiryDate?, maturityDate?, currentCommitment, originalCommitment?, commitmentSchedule?, dealFxRate?, governingLaw?, feature*, lien?, seniority?, (fixedRateOption | floatingRateOption | legacyFloatingRateOption | lcOption)+, accruingPikOption?, accruingFeeOption*, defaultRate?, mandatoryCostRate?, penaltyRate?, multiCurrency?
</facilityGroup>
Content model elements (30):
accruingFeeOption (defined in FacilityOptionsFeesAndRates.model group),
accruingPikOption (defined in FacilityOptionsFeesAndRates.model group),
agentPartyReference (defined in FacilityRoles.model group),
borrowerPartyReference (defined in FacilityRoles.model group),
coBorrowerPartyReference,
commitmentSchedule (defined in FacilityCommitment.model group),
currentCommitment,
dealFxRate,
dealReference (defined in FacilityIdentifier complexType),
defaultRate,
description (defined in IdentifiedAssetWithParty complexType),
expiryDate (defined in FacilityDates.model group),
feature (defined in FacilityFeatures.model group),
fixedRateOption (defined in FacilityOptionsFeesAndRates.model group),
floatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
governingLaw (defined in AbstractFacility complexType),
guarantorPartyReference (defined in FacilityRoles.model group),
instrumentId (defined in IdentifiedAssetWithParty complexType),
lcIssuingBankPartyReference,
lcOption (defined in FacilityOptionsFeesAndRates.model group),
legacyFloatingRateOption (defined in FacilityOptionsFeesAndRates.model group),
lien (defined in FacilityFeatures.model group),
mandatoryCostRate (defined in FacilityRates.model group),
maturityDate (defined in FacilityDates.model group),
multiCurrency,
originalCommitment,
partyReference (defined in IdentifiedAssetWithParty complexType),
penaltyRate,
seniority (defined in FacilityFeatures.model group),
startDate (defined in FacilityDates.model group)
Included in content model of elements (4):
deal (in dealStatement),
deal (in loanLegalActionStatement),
facilityStatement,
loanLegalActionStatement
May be substituted with elements (4):
delayedDraw, letterOfCreditFacility, revolver, termLoan
Known Usage Locations
Annotation
Head of the substitution group for all facility types.
XML Source (w/o annotations (1); see within schema source)
<xsd:element abstract="true" name="facilityGroup" type="AbstractFacility"/>
