complexType "Party"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-shared-5-3.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 5 locations

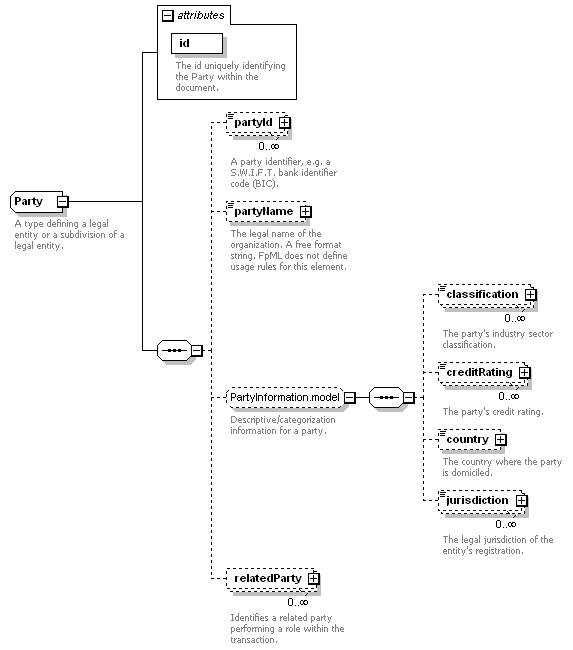

Content Model Diagram
XML Representation Summary
<...

id
 =
 xsd:ID
    >

Content:
 partyId*, partyName?, (classification*, creditRating*, country?, jurisdiction*)?, relatedParty*
</...>
Content Model Elements (7):
classification,
country (defined in PartyInformation.model group),
 partyId,
relatedParty (defined in Party complexType)
All Direct / Indirect Based Elements (5):
party (defined in PartiesAndAccounts.model group), party (in nettedTradeCashflowsMatchResult),
Known Usage Locations
Annotation
Annotation 1 [src]:
A type defining a legal entity or a subdivision of a legal entity.
Annotation 2 [src]:
Parties can perform multiple roles in a trade lifecycle. For example, the principal parties obligated to make payments from time to time during the term of the trade, but may include other parties involved in, or incidental to, the trade, such as parties acting in the role of novation transferor/transferee, broker, calculation agent, etc. In FpML roles are defined in multiple places within a document.
XML Source (w/o annotations (6); see within schema source)
<xsd:complexType name="Party">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyId" type="PartyId"/>
<xsd:element minOccurs="0" name="partyName" type="PartyName"/>
<xsd:group minOccurs="0" ref="PartyInformation.model"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="PartyRelationship"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID" use="required"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
required
The id uniquely identifying the Party within the document.
XML Source (w/o annotations (1); see within schema source)
<xsd:attribute name="id" type="xsd:ID" use="required"/>
Content Element Detail (all declarations; defined within this component only; 3/7)
partyId
Type:
PartyId, simple content
A party identifier, e.g. a S.W.I.F.T. bank identifier code (BIC).
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="partyId" type="PartyId"/>
partyName
Type:
PartyName, simple content
The legal name of the organization. A free format string. FpML does not define usage rules for this element.
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="partyName" type="PartyName"/>
relatedParty
Type:
PartyRelationship, complex content
Identifies a related party performing a role within the transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="relatedParty" type="PartyRelationship"/>
