group "CommodityFinancialOption.model"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
14 elements
Defined:
globally in fpml-com-5-3.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

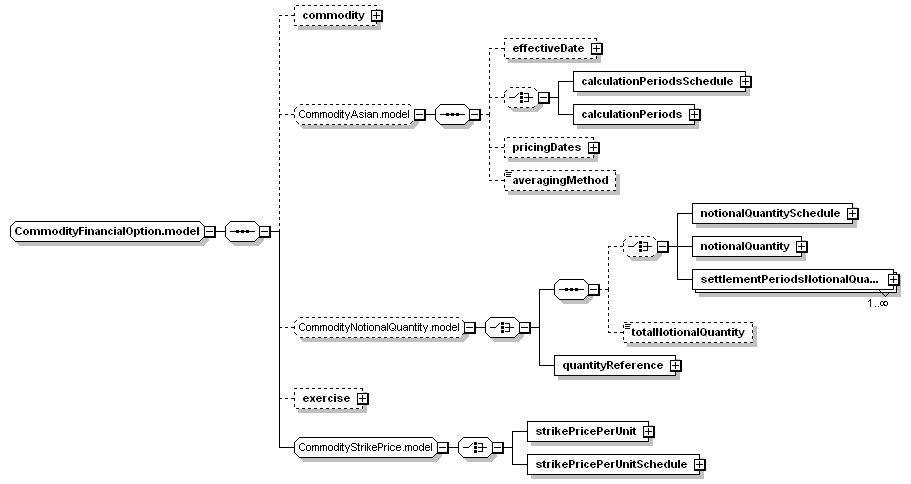

Content Model Diagram
Complex Content Model
commodity?, (effectiveDate?, (calculationPeriodsSchedule | calculationPeriods)?, pricingDates?, averagingMethod?)?, (((notionalQuantitySchedule | notionalQuantity | settlementPeriodsNotionalQuantity+)?, totalNotionalQuantity?) | quantityReference)?, exercise?, (strikePricePerUnit | strikePricePerUnitSchedule)
Content Model Elements (14):
averagingMethod (in commodityOption),
calculationPeriods (in commodityOption),
calculationPeriodsSchedule (in commodityOption),
commodity (in commodityOption),
effectiveDate (in commodityOption),
exercise (in commodityOption),
notionalQuantity,
notionalQuantitySchedule,
pricingDates (in commodityOption),
quantityReference (defined in CommodityNotionalQuantity.model group),
settlementPeriodsNotionalQuantity,
strikePricePerUnit,
strikePricePerUnitSchedule,
totalNotionalQuantity
Known Usage Locations
Annotation
Items specific to financially-settled commodity options.
XML Source (w/o annotations (5); see within schema source)
<xsd:group name="CommodityFinancialOption.model">
<xsd:sequence>
<xsd:element minOccurs="0" name="commodity" type="Commodity"/>
<xsd:group minOccurs="0" ref="CommodityAsian.model"/>
<xsd:group minOccurs="0" ref="CommodityNotionalQuantity.model"/>
<xsd:element minOccurs="0" name="exercise" type="CommodityExercise"/>
<xsd:group ref="CommodityStrikePrice.model"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 2/14)
commodity
Type:
Commodity, complex content
Specifies the underlying component. At the time of the initial schema design, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="commodity" type="Commodity"/>
exercise
Type:
CommodityExercise, complex content
The parameters for defining how the commodity option can be exercised and how it is settled.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exercise" type="CommodityExercise"/>
