complexType "RequestLimitCheck"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 3 attributes, 25 elements
Defined:
globally in fpml-pretrade-processes-5-5.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

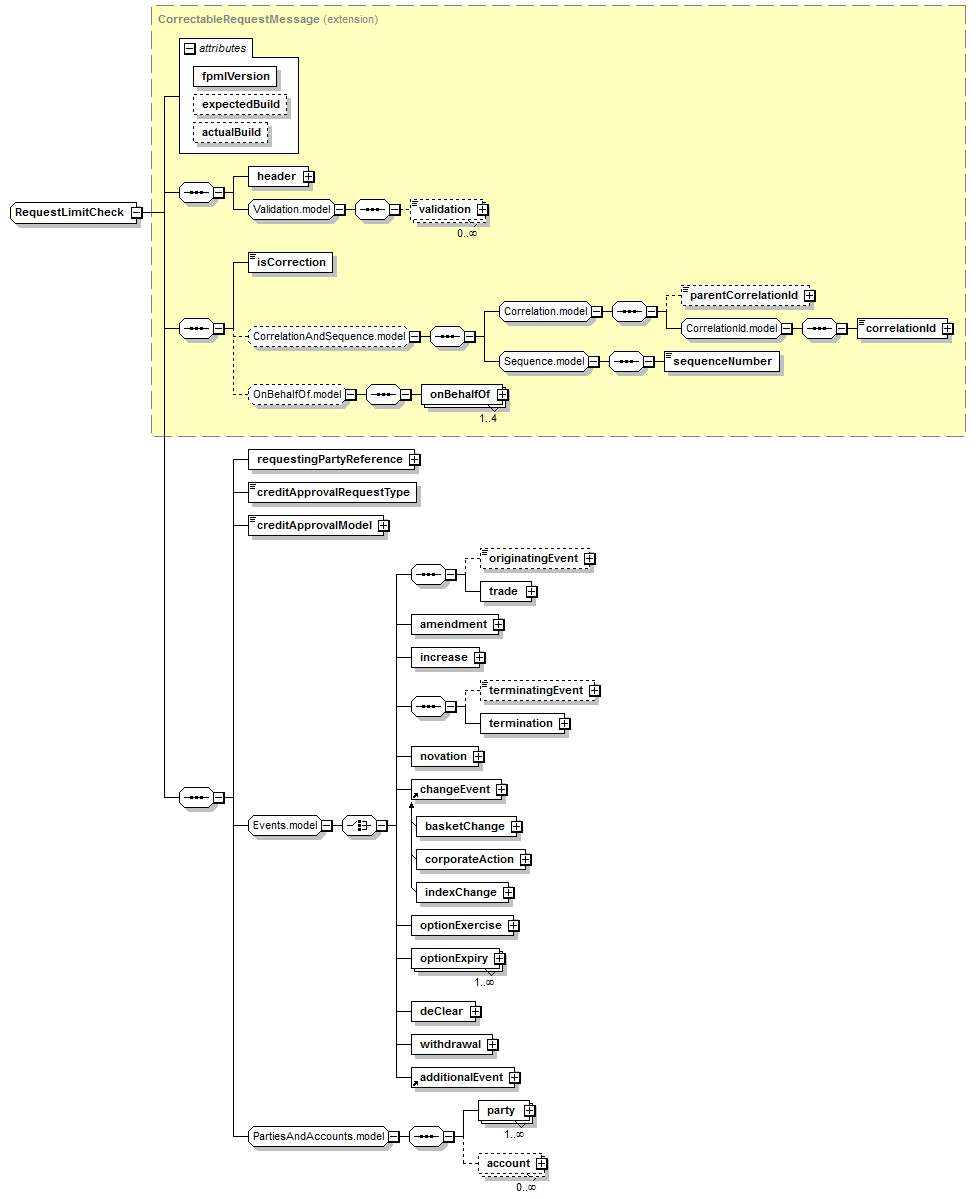

Content Model Diagram
XML Representation Summary
<...

fpmlVersion
 =
 xsd:token
expectedBuild
 =
 xsd:positiveInteger
actualBuild
 =
 "1"
    >

Content:
 header, validation*, isCorrection, (parentCorrelationId?, correlationId, sequenceNumber)?, onBehalfOf[1..4]?, requestingPartyReference, creditApprovalRequestType, creditApprovalModel, ((originatingEvent?, trade) | amendment | increase | (terminatingEvent?, termination) | novation | changeEvent | optionExercise | optionExpiry+ | deClear | withdrawal | additionalEvent), party+, account*
</...>
Content Model Elements (25):
account,
header (defined in RequestMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
 optionExercise,
sequenceNumber (defined in Sequence.model group),
All Direct / Indirect Based Elements (1):
requestLimitCheck
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      RequestMessage (extension)
          CorrectableRequestMessage (extension)
              RequestLimitCheck
XML Source (see within schema source)
<xsd:complexType name="RequestLimitCheck">
<xsd:complexContent>
<xsd:extension base="CorrectableRequestMessage">
<xsd:sequence>
<xsd:element name="requestingPartyReference" type="PartyReference"/>
<xsd:element name="creditApprovalRequestType" type="CreditApprovalRequestTypeEnum"/>
<!-- Enum = AllOrNone, AllowPartial -->
<xsd:element name="creditApprovalModel" type="CreditApprovalModel"/>
<!-- Coding Scheme = PushToPing, PushToStop, Plus1ToStop, Plus1ToPing, Ping -->
<xsd:group ref="Events.model"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/25)
creditApprovalModel
Type:
CreditApprovalModel, simple content
Simple Content
xsd:normalizedString
maxLength:
 255
XML Source (see within schema source)
<xsd:element name="creditApprovalModel" type="CreditApprovalModel"/>
creditApprovalRequestType
Type:
CreditApprovalRequestTypeEnum, simple content
Simple Content
enumeration of xsd:token
Enumeration:
 "AllOrNone", "AllowPartial"
XML Source (see within schema source)
<xsd:element name="creditApprovalRequestType" type="CreditApprovalRequestTypeEnum"/>
requestingPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element name="requestingPartyReference" type="PartyReference"/>
