element <commodityOption> (global)

Namespace:	http://www.fpml.org/FpML-5/transparency
Type:	CommodityOption
Content:	complex, 1 attribute, 27 elements
Subst.Gr:	may substitute for element product
Defined:	globally in fpml-com-5-5.xsd; see XML source
Used:	never

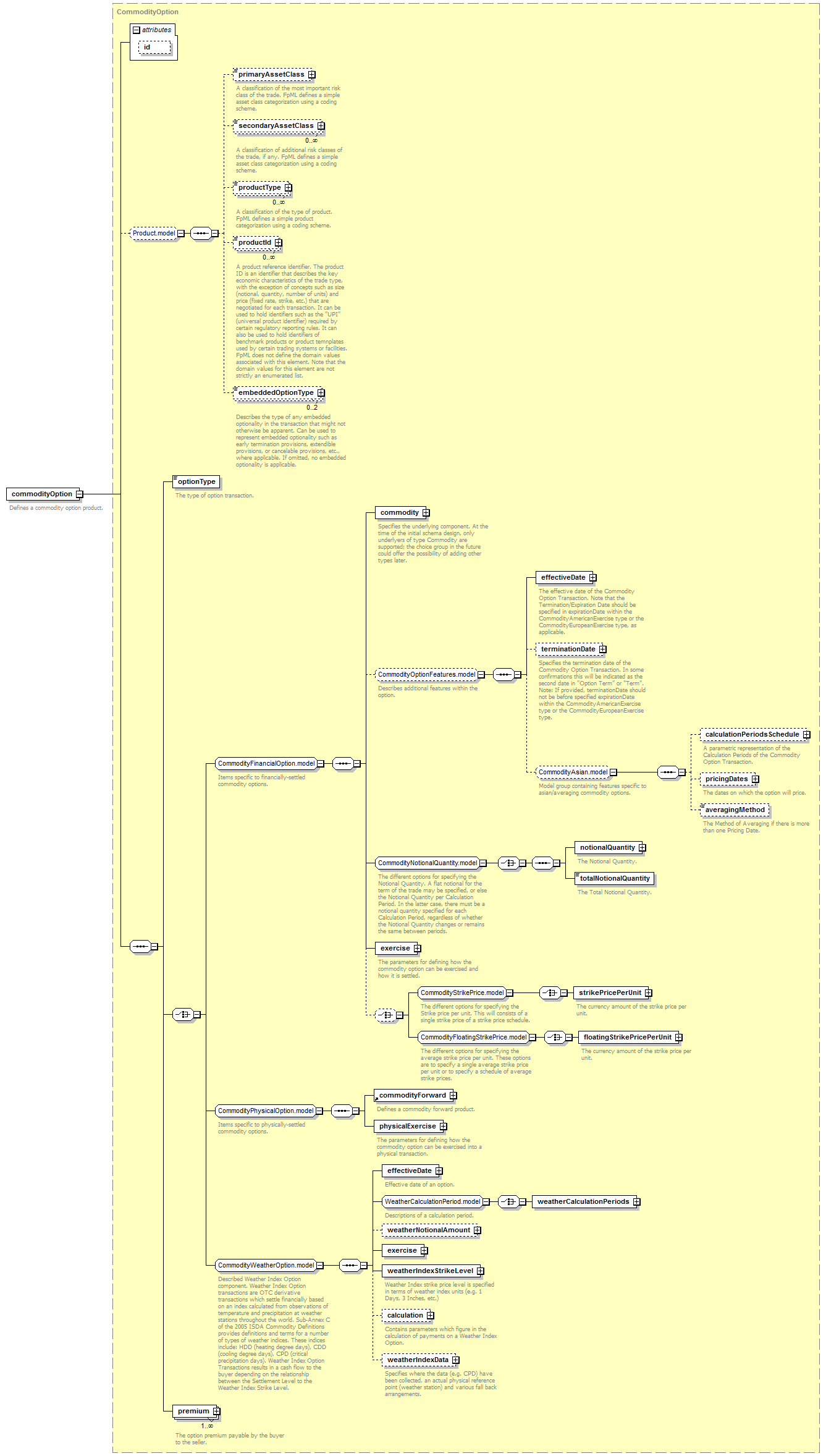

Content Model Diagram

XML Representation Summary

<commodityOption

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, optionType, ((commodity, (effectiveDate, terminationDate?, (calculationPeriodsSchedule?, pricingDates?, averagingMethod?)?)?, notionalQuantity, totalNotionalQuantity, exercise, (strikePricePerUnit | floatingStrikePricePerUnit)?) | (commodityForward, physicalExercise) | (effectiveDate, weatherCalculationPeriods, weatherNotionalAmount?, exercise, weatherIndexStrikeLevel, calculation?, weatherIndexData?)), premium+

</commodityOption>

Content model elements (27):

averagingMethod (in commodityOption),

calculation (in commodityOption),

calculationPeriodsSchedule (in commodityOption),

commodity (in commodityOption),

commodityForward,

effectiveDate (in commodityOption),

embeddedOptionType,

exercise (in commodityOption),

floatingStrikePricePerUnit,

notionalQuantity,

optionType (in commodityOption),

physicalExercise (in commodityOption),

premium (in commodityOption),

pricingDates (in commodityOption),

primaryAssetClass (defined in Product.model group),

productId,

productType (defined in Product.model group),

secondaryAssetClass,

strikePricePerUnit,

terminationDate (in commodityOption),

totalNotionalQuantity,

weatherCalculationPeriods,

weatherIndexData (in commodityOption),

weatherIndexStrikeLevel,

weatherNotionalAmount (in commodityOption)

May be included in elements by substitutions (14):

feeTrade,

newTrade,

oldTrade (in change),

oldTrade (in novation),

originalTrade (defined in OptionExercise complexType),

originalTrade (defined in TradeChangeBase complexType),

physicalSettlement (defined in OptionExercise complexType),

resultingTrade,

trade (defined in Events.model group),

trade (defined in ImpliedTrade complexType),

trade (in affectedTransactions),

trade (in amendment),

trade (in change),

trade (in dataDocument)

Annotation

Defines a commodity option product.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodityOption" substitutionGroup="product" type="CommodityOption"/>
