group "CommodityFinancialOption.model"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	11 elements
Defined:	globally in fpml-com-5-5.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

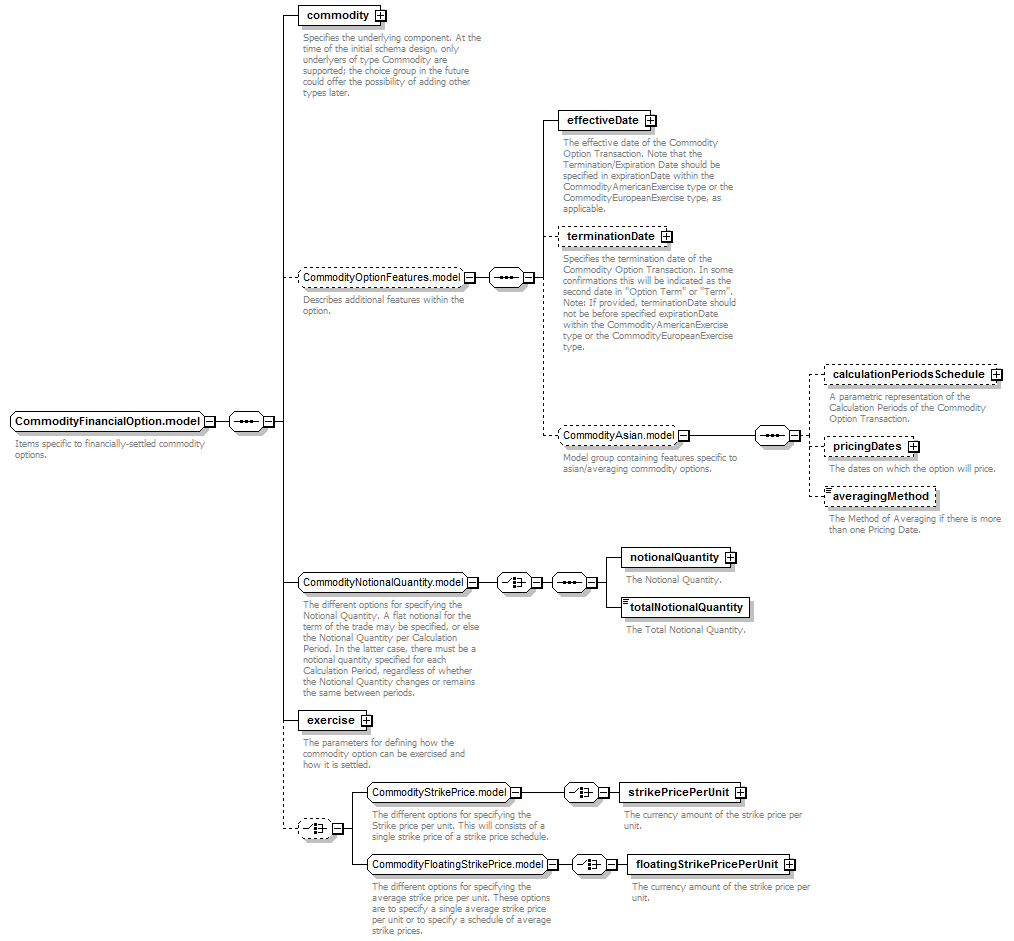

Content Model Diagram

Complex Content Model

commodity, (effectiveDate, terminationDate?, (calculationPeriodsSchedule?, pricingDates?, averagingMethod?)?)?, notionalQuantity, totalNotionalQuantity, exercise, (strikePricePerUnit | floatingStrikePricePerUnit)?

Content Model Elements (11):

averagingMethod (in commodityOption),

calculationPeriodsSchedule (in commodityOption),

commodity (in commodityOption),

effectiveDate (in commodityOption),

exercise (in commodityOption),

floatingStrikePricePerUnit,

notionalQuantity,

pricingDates (in commodityOption),

strikePricePerUnit,

terminationDate (in commodityOption),

totalNotionalQuantity

Known Usage Locations

In definitions of global complexTypes (1):
CommodityOption

Annotation

Items specific to financially-settled commodity options.

XML Source (w/o annotations (5); see within schema source)

<xsd:group name="CommodityFinancialOption.model">

<xsd:sequence>

<xsd:element name="commodity" type="Commodity"/>

<xsd:group minOccurs="0" ref="CommodityOptionFeatures.model"/>

<xsd:group ref="CommodityNotionalQuantity.model"/>

<xsd:element name="exercise" type="CommodityExercise"/>

<xsd:choice minOccurs="0">

<xsd:group ref="CommodityStrikePrice.model"/>

<xsd:group ref="CommodityFloatingStrikePrice.model"/>

</xsd:choice>

</xsd:sequence>

</xsd:group>

Content Element Detail (all declarations; defined within this component only; 2/11)

commodity

Type:

Commodity, complex content

Specifies the underlying component. At the time of the initial schema design, only underlyers of type Commodity are supported; the choice group in the future could offer the possibility of adding other types later.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="commodity" type="Commodity"/>

exercise

Type:

CommodityExercise, complex content

The parameters for defining how the commodity option can be exercised and how it is settled.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="exercise" type="CommodityExercise"/>
