complexType "ConstituentWeight"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 3 elements
Defined:
globally in fpml-asset-5-8.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

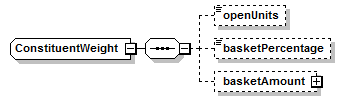

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (3):
openUnits (defined in ConstituentWeight complexType)
All Direct / Indirect Based Elements (2):
Known Usage Locations
Annotation
A type describing the weight of each of the underlyer constituent within the basket, either in absolute or relative terms.
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="ConstituentWeight">
<xsd:sequence>
<xsd:element minOccurs="0" name="openUnits" type="xsd:decimal"/>
<xsd:element minOccurs="0" name="basketPercentage" type="RestrictedPercentage"/>
<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Basket Amount is not present in ISDA documentation or otherwise, basket is weighted on percentage (relative weight) or open units (absolute weight), both of which are stable expressions." minOccurs="0" name="basketAmount" type="Money"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
basketAmount
Type:
Money, complex content
DEPRECATED. The relative weight of each respective basket constituent, expressed as a monetary amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element fpml-annotation:deprecated="true" fpml-annotation:deprecatedReason="Basket Amount is not present in ISDA documentation or otherwise, basket is weighted on percentage (relative weight) or open units (absolute weight), both of which are stable expressions." minOccurs="0" name="basketAmount" type="Money"/>
basketPercentage
Type:
RestrictedPercentage, simple content
The relative weight of each respective basket constituent, expressed in percentage. A basket percentage of 5% would be represented as 0.05.
Simple Content
xsd:decimal
maxInclusive:
1
minInclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="basketPercentage" type="RestrictedPercentage"/>
openUnits
Type:
xsd:decimal, predefined, simple content
The number of units (index or securities) that constitute the underlyer of the swap. In the case of a basket swap, this element is used to reference both the number of basket units, and the number of each asset components of the basket when these are expressed in absolute terms.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="openUnits" type="xsd:decimal"/>
