complexType "ActionOnExpiration" | XML Schema Documentation

complexType "ActionOnExpiration"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 10 elements
Defined:	globally in fpml-business-events-5-8.xsd; see XML source
Used:	at 1 location

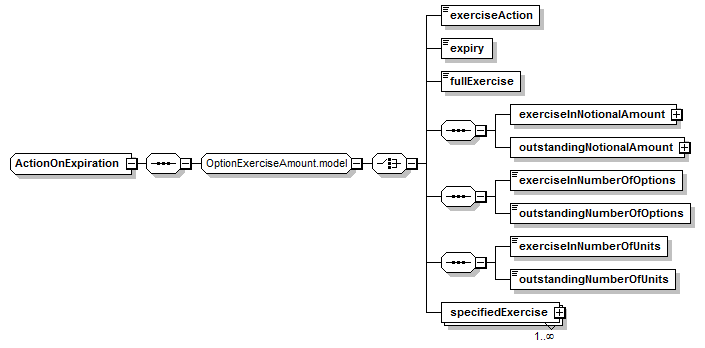

Content Model Diagram

XML Representation Summary

<...>

Content:

exerciseAction | expiry | fullExercise | (exerciseInNotionalAmount, outstandingNotionalAmount) | (exerciseInNumberOfOptions, outstandingNumberOfOptions) | (exerciseInNumberOfUnits, outstandingNumberOfUnits) | specifiedExercise+

</...>

Content Model Elements (10):

exerciseAction,

exerciseInNotionalAmount (defined in OptionExerciseAmount.model group),

exerciseInNumberOfOptions (defined in OptionExerciseAmount.model group),

exerciseInNumberOfUnits (defined in OptionExerciseAmount.model group),

expiry (defined in OptionExerciseAmount.model group),

outstandingNotionalAmount (defined in OptionExerciseAmount.model group),

outstandingNumberOfOptions (defined in OptionExerciseAmount.model group),

outstandingNumberOfUnits (defined in OptionExerciseAmount.model group),

specifiedExercise

All Direct / Indirect Based Elements (1):

actionOnExpiration

Known Usage Locations

As direct type of elements (1):

actionOnExpiration

XML Source (see within schema source)

<xsd:complexType name="ActionOnExpiration">

<xsd:sequence>

<xsd:group ref="OptionExerciseAmount.model"/>

</xsd:sequence>

</xsd:complexType>
