complexType "CorporateActionEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 2 elements
Defined:
globally in fpml-business-events-5-8.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

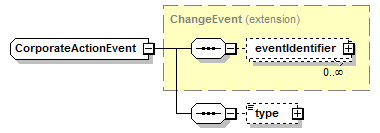

Content Model Diagram
XML Representation Summary
<...>

Content:
</...>
Content Model Elements (2):
eventIdentifier (defined in AbstractEvent complexType),
All Direct / Indirect Based Elements (1):
corporateAction
Known Usage Locations
Annotation
A structure indicating that a trade has changed due to a corporate action
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  ChangeEvent (extension)
      CorporateActionEvent
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="CorporateActionEvent">
<xsd:complexContent>
<xsd:extension base="ChangeEvent">
<xsd:sequence>
<xsd:element minOccurs="0" name="type" type="CorporateActionType"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/2)
type
Type:
CorporateActionType, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (see within schema source)
<xsd:element minOccurs="0" name="type" type="CorporateActionType"/>
